Product Details:
|
| Name: | Linear Scale And Two-Axis SDS6-2V Digital Readout Kits | Application: | Precision Grinder, Boring Machine And Lathes |
|---|---|---|---|
| Material: | Iron/metal | Sealing Protection Method: | IP53 |
| Input Signal: | TTL / RS232/ EIA-422-A | Plug: | US, UK, EU, AU |
| After Sales Service: | 12 Months | Resolution（μm）: | 0.1/0.5/1/5um |
| Effective Range（cm）: | 0~300cm |
2-Axis SDS6-2V Digital Reading Display Meets The Majority Of Metal Processing Measurement
The SDS6-2V digital reader uses cutting-edge 16-bit microcontroller technology, allowing it to replace any basic or complicated function required by the SDS2 series. Because of its improved performance, it can perform corresponding jobs more effectively and improve the quality of industrial operations.
The functions of SDS6-2V include:
Features include a 200-point auxiliary zero position function, split action in the middle, and conversion to "mm/inch" as illustrated.
Radius/Diameter Switch Display
Restitution of Divided Errors
Restitution for Linear Error
Recall for power outages.
Change of bedtime
Mathematical calculations
RS-232-C interface options
The places where SDS6-2V DRO is widely used:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifics of SDS6-2V:
The DRO SDS-6-2V dual axis digital reading display is useful for a variety of applications. Users can customize system configurations to better meet their demands and react to changing processing requirements. SDS6-2V allows operators to execute a variety of measurement activities, such as measuring taper, calculating arcs, traveling through inclined surfaces, drilling holes at equal intervals around the center of the circle, and applying digital filters. Because of its many functions, SDS6-2V can be used in a variety of machining environments, allowing users to gain a better understanding of the equipment's movement trajectory and providing a more comprehensive display of the machine tool's movement trajectory to determine whether the machine tool is on the proper machining track. It is also the first company in China to use DRO systems with 16 bit and 32-bit calculators. The maximum a/b input frequency of the DRO system is 5.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

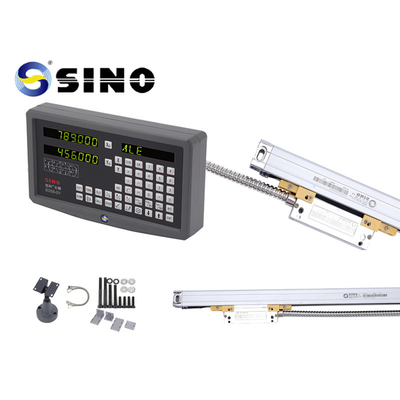

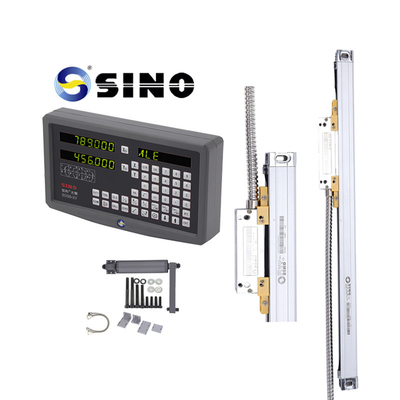

Product image /photos:
The rack in the picture is optioned, not standard product.
