SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling

SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling
SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling

Large Image :  SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-2V,KA200/300/500/600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling

Description
Name: SDS6-2V Digital Reading Display With Linear Grating Ruler Application: Boring Machine And Drilling, Lathe, Milling Machine
Material: Iron/metal Sealing Protection Method: IP53
Input Signal: TTL / RS232 Ambient Temperature: 0~70℃
After Sales Service: 1 Year Warranty Effective Range: 0~3000mm
High Light:

Milling Digital Reading Display

,

SDS6-2V Digital Reading Display

,

Linear Grating Ruler Digital Reading Display

SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling





The SDS6-2V digital reader uses cutting-edge 16-bit microcontroller technology, allowing it to replace any basic or complicated function required by the SDS2 series. Because of its improved performance, it can perform corresponding jobs more effectively and improve the quality of industrial operations.



The functions of SDS6-2V include:



200-Point Auxiliary Zero Position Function with Split Action in the Middle.
Conversion of "mm/inch" represented as Radius/Diameter. Switch Display
Restitution of Divided Errors
Restitution for Linear Error
Recall for power outages.
Change of bedtime
Mathematical calculations
RS-232-C interface options



SDS6-2V DRO commonly used processing locations:





Uses for Machining: PCD circumferential division (suitable for milling and spark testers).
Involute chamber cutting function (for milling machines)
Bevel and angular surface finishing (specific to milling machines)
N3 function (unique for milling machines)
Diagonal boring with a milling machine.
R-arc function (unique for milling machines)
Tape measure function (use only with a lathe)
200-piece collection of tools (including a lathe)
Dithering prevention function (applicable for grinding machines)



Specifics of SDS6-2V:

There are several applications for the dual axis digital reading display DRO SDS-6-2V. In order to meet their various processing needs, users can modify the system setup and select a processing technique. Many measurement activities, such as measuring taper, calculating arcs, passing over slopes, drilling holes at regular intervals around the circle's center, and employing digital filters, can be carried out by operators using the SDS6-2V. These robust features enable the SDS6-2V to be used in a variety of machining environments, providing users with a better understanding of the equipment's movement trajectory as well as a more comprehensive display of the machine's movement trajectory to assist them in determining whether the machine is operating on the intended machining path. Staff personnel are also capable of quickly fixing errors to avoid damaged merchandise. It is also the first Chinese firm to use a DRO system with 16 and 32 bit calculators. The DRO system has a maximum a/b input frequency of 5.



Model No:.



SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function



Characteristic​:


Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)



Packaging List :

1 PC 2 Axis LED digital readout SDS6-2V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable

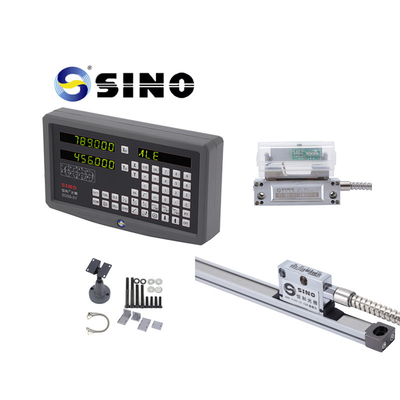

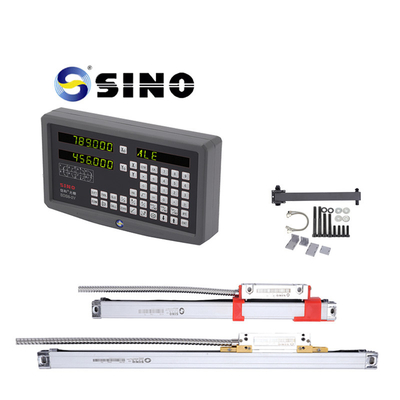

Product image /photos:



SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling 0SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling 1SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling 2

SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling 3

The rack in the picture is optioned, not standard product.



SDS6-2V Digital Reading Display And Linear Grating Ruler Are Specifically Designed For Use In Milling 4
