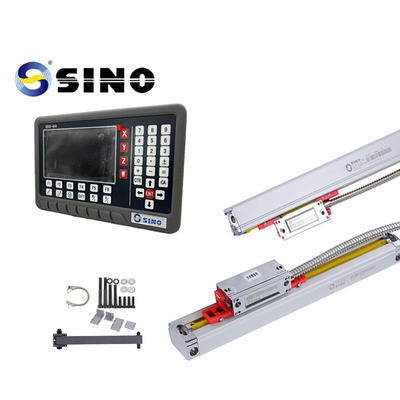

SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling

SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling
SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling

Large Image :  SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS,ISO9001
Model Number: SDS5-4VA, KA-300, KA-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 30000 sets per month

SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling

Description
Item Name: SINO SDS5-4VA Digital Display Meter Offers Four Linear Scales Usage: 4-axis CNC Drilling Device
System: SDS5-4VA DRO System Digital Readout Scale Model: KA-600/KA-300/KA-500/KA-200/KA-800M
Signal Output: EIA-422-A/RS422/TTL Resolution: 0.005 / 0.001 / 0.0005 Mm
Encoder Length: 70-3000mm Display Type: 7" LCD
Interface: RS-232-C/ RS-485
High Light:

CNC Milling Digital Display Meter

,

SINO SDS5-4VA Digital Display Meter

For CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision





Product Description:


The SINO SDS5-4VA High Precision Digital Display Meter is a versatile and accurate measuring device designed for CNC machine milling applications. It comes bundled with four linear scales, allowing simultaneous measurement along multiple axes and enabling precise positioning during the milling process.



Key Features:



Digital Display Meter: Clear and simple-to-read measurements are provided by the SDS5-4VA's digital display meter. Operators can watch the CNC machine move in real time as the meter shows position values from the linear scales correctly.
High Precision: The high precision of this digital display meter guarantees precise measurement of linear movements. It facilitates accurate drilling, milling, and cutting processes that lead to high-quality final goods and less material waste.
Four Linear Scales: The SDS5-4VA comes with four linear scales, enabling measurement on multiple axes simultaneously. This feature is particularly beneficial in CNC milling machines that have multidirectional movements along the X, Y, and Z axes. It allows for precise alignment and coordinated positioning during complex milling tasks.
User-Friendly Interface: The digital display meter has an easy-to-use interface that makes it simple to use. Operators may easily configure parameters, switch between measurement modes, and access extra features thanks to its user-friendly controls and functionality.
Numerous Measurement Modes: The SDS5-4VA is capable of supporting both absolute and incremental measurement modes. While the incremental mode monitors the relative movement from the prior location, the absolute mode provides the actual position reading from the starting point. These modes provide adaptability to various milling tasks and user choices.Compatibility: The digital display meter may be easily integrated into current systems and is compatible with CNC milling machines. To provide exact coordination and synchronization, it can interact with other CNC components including motors and controllers and supports common communication protocols.
Easy to Use and Robust Design: The SDS5-4VA is made to endure the rigors of industrial settings. It has a robust enclosure that keeps out dust, debris, and vibrations that are typical in milling applications away from the linear scales and display meter. Its small size and simple installation make setup more convenient.

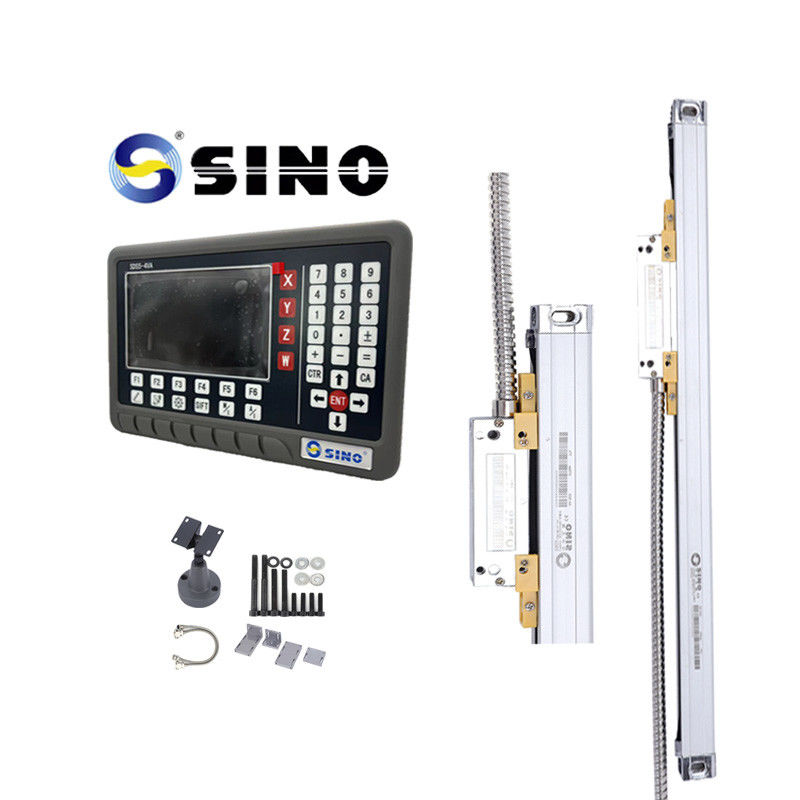

Package included:



x1 TFT DRO SDS5-4VA

linear glass scales from the KA series, often models KA-600 or KA-300, x2 pc.

Additionally, the normal length of the extension signal line for scales is 3000mm, though customized lengths can be given.

as required by the users.(1M to 10M)



Package list:



Item name Four axes digital Readout system
DRO Model SDS5-4VA
Linear scale for axis X KA-600 / KA-300: 70-3000mm
Linear scale for axis Y KA-600 / KA-300: 70-3000mm
Rack for DRO Rack L400
Protection cover for X scale Type D / M
Protection cover for Y scale Type D / M
Bracket for scales

T-bracket (2 sets)

Others Cable / Screws / Manual





Detail Information:



SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling 0

SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling 1



Pin Description:

SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling 2



All linear scales will be tested before delivery. Here is a sample of a scale's test report.

SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision For CNC Milling 3
