Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen

Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen
Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen

Large Image :  Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS5-4VA, KA300, Ka500
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen

Description
Name: Metal Sino Sds5-4va Digital Display Meter With General Readouts And A 4-Axis LCD Screen Number Of Axis: Device For DRO Measurement On Four And Five Axes
Color: Grey/black-Colors Signal: Digital Readout Kits: TTL / RS422 Optical Encoder
Voltage: Digital Readout System: 50-60Hz, AC 100-240V Suitable For: Machines For Milling, Boring, And CNC
Resolution: 1um,5um,0.5um, 0.1umm Material: Metal
High Light:

Metal Sino Digital Readout Meter

,

General Readouts Digital Readout Meter

,

4-Axis LCD Screen Digital Readout Meter

Metal Sino SDS5-4VA Digital Display Meter With General Readouts on a Four Axis LCD Screen​​





Thanks to the dual frequency laser instrument and ingenious software created by Loksshun, the SDS5 DRO has up to 600 Non-linear Error Compensation Points on each axis. Contrastive measurement findings are stored on the hard drive after being processed and entered into a data file.



The SDS5-4VA DRO Measuring Machine's features include:



  1. Four-axis LCD screen: The display meter has a four-axis LCD screen that lets you see and monitor four axes' worth of measurements at once. This function improves operating convenience and allows for effective multitasking.
  2. Measurements such as distance, position, speed, and other pertinent characteristics can be seen on the digital display meter thanks to its general readout feature. It facilitates simpler monitoring and control of the machining process by providing a clear and succinct visual representation of the data.
  3. Adaptable compatibility The Metal Sino SDS5-4VA Digital Display Meter can be used with a range of industrial equipment, such as lathes and milling machines. It is simple to include into the machine's control system, facilitating smooth synchronization and communication.
  4. SDS5-4VA model: A particular model in the Metal Sino Digital Display Meter series is the SDS5-4VA. In comparison to previous models, it delivers enhanced performance and sophisticated functions. For complete specs and operating instructions, make sure to refer to the user manual or paperwork provided by the manufacturer.



requirements for grating rulers and SINO SDS5-4VA requirements



Details
The SDS5-4VA Digital Readout System from SINO
Form: DRO Luxurious Form
input in four dimensions
Signal output: TTL/RS-422
residence: metal
Glass scales for manual or CNC lathes, milling, drilling, grinding, and EDM machines
Instrument for Single, Three, or Four Axis Grating Scale Position Determination
Among the guarantees are ISO 9001, ROHS, and CE.
IP67 Sealing Protection Class
trustworthy, strong, simple to install, and intuitive
An analysis of the machine test is given.



Packaging List :

1 PC 4 Axis LED digital readout SDS5-4VA
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

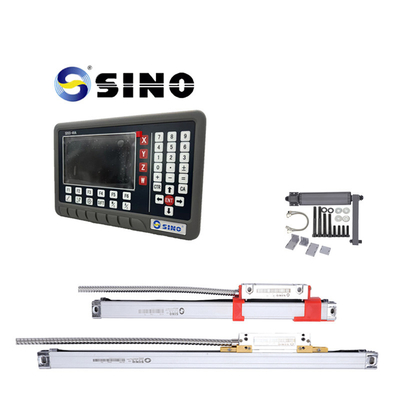

Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen 0

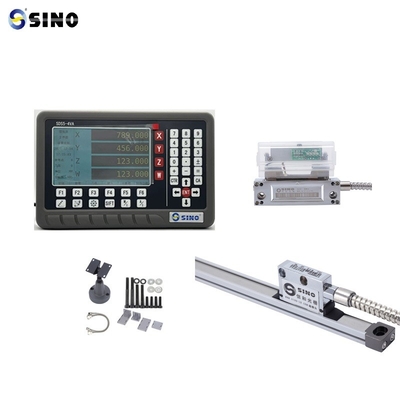

Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen 1

The rack in the picture is optioned, not standard product.



Metal Sino Sds5-4va Digital Display Meter With General Readouts On A 4-Axis LCD Screen 2
