SDS6-2V Milling Lathe 50-60Hz Two Axis SINO Digital Readout System DRO

SDS6-2V Milling Lathe 50-60Hz Two Axis SINO Digital Readout System DRO

Utilizing the most latest 16 bit SCM technology, the SDS6-2V digital readout is an all-purpose DRO that can replace any kind of basic or specific function needed by the SDS2 series.

Basic SDS6-2V Digital Readout Functions

200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
Uses for Machining

Sino Digital readout system SDS6-2V DRO's improved functions

PCD circumferential division (fits milling machines and spark testers)

Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)

N3 function (unique to milling machines)

Diagonal boring using a milling machine

R-arc function (unique to milling machines)

Tape measure function (for use with a lathe only)

200-piece set of tools (with a lathe included)

Dithering prevention function (relevant to grinding machines)

Specifications :

Dithering prevention function (relevant to grinding machines)

The DRO SDS6-2V is a versatile two-axis digital readout. It can adjust to the different requirements for milling by changing the system parameters. It can process angular surfaces, compute angles, measure taper, apply digital filters, drill holes perpendicular to a line, drill holes with constant spacing around a circle, and compute arcs, among other graphical machining operations.The graphics function is made easier to utilize by these characteristics. This is the first facility in China to implement a DRO system with a 16- and 32-bit calculator, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

Model No:

SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function

Feature:
Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)

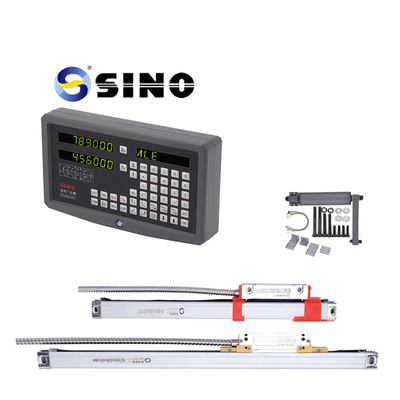

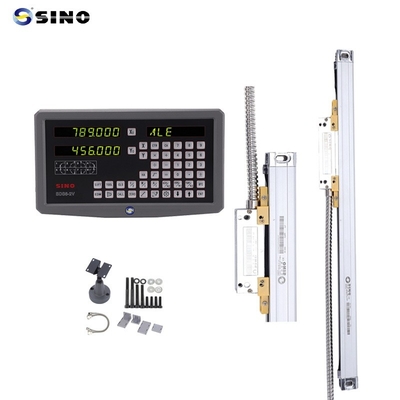

Product image /photos:

The rack in the picture is optioned, not standard product.
