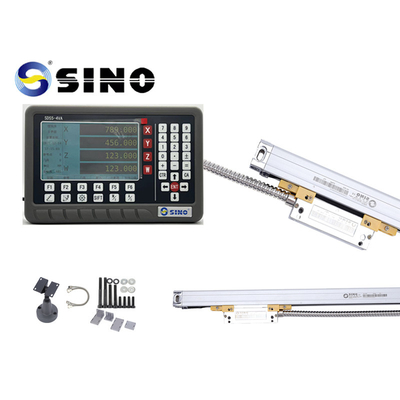

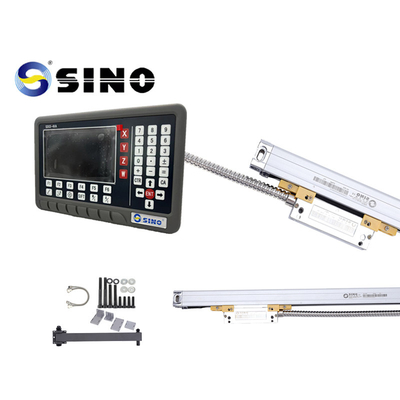

CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision

CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision
CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision

Large Image :  CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS,ISO9001
Model Number: SDS5-4VA, KA-300, KA-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 30000 sets per month

CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision

Description
Item Name: For CNC Milling, SINO SDS5-4VA Digital Display Meter Offers Four Linear Scales And Excellent Precision Usage: CNC Drilling Tool With Four Axes
System: SDS5-4VA DRO System Scale Model: KA-600/KA-300/KA-500/KA-200
Signal Output: EIA-422-A/RS422/TTL Resolution: 0.005 / 0.001 / 0.0005 Mm
Encoder Length: 70-3000mm Display Type: 7" LCD
Interface: RS-232-C/ RS-485
High Light:

SINO SDS5-4VA Digital Display Meter

,

High Precision Digital Display Meter

,

Digital Display Meter With 4 Linear Scales

For CNC Milling, SINO SDS5-4VA Digital Display Meter With 4 Linear Scales And High Precision​





SINO SDS5-4VA Digital Display Meter: 4 Linear Scales & High Precision For CNC Milling



Product Description:



For use in CNC machine milling operations, the SINO SDS5-4VA High Precision Digital Display Meter is a flexible and precise measuring tool. Four linear scales are included in the package, providing for accurate placement and simultaneous measurement along several axes throughout the milling process.



Key Features:



Digital Display Meter: Clear and simple-to-read measurements are provided by the SDS5-4VA's digital display meter. Operators can watch the CNC machine move in real time as the meter shows position values from the linear scales correctly.
High Precision: With its high precision, this digital display meter ensures precise linear movements. It helps achieve precise cutting, drilling, and milling operations, resulting in quality finished products and reduced material waste.

Four Linear Scales: The SDS5-4VA has four linear scales that allow for simultaneous measurement on several axes. With CNC milling machines that provide multidirectional movements along the X, Y, and Z axes, this functionality is especially helpful. During intricate milling jobs, it enables exact alignment and synchronized positioning.

User-Friendly Interface: The digital display meter has an easy-to-use interface that makes it simple to use. Operators may easily configure parameters, switch between measurement modes, and access extra features thanks to its user-friendly controls and functionality.
Numerous Measurement Modes: The SDS5-4VA is capable of supporting both absolute and incremental measurement modes.
While the incremental mode monitors the relative movement from the prior location, the absolute mode provides the actual position reading from the starting point. These modes

Provide adaptability to diverse milling processes and user inclinations.

Compatibility: The digital display meter may be easily integrated into current systems and is compatible with CNC milling machines. To provide exact coordination and synchronization, it can interact with other CNC components including motors and controllers and supports common communication protocols.
Easy to Use and Robust Design: The SDS5-4VA is made to endure the rigors of industrial settings. It has a robust enclosure that keeps out dust, debris, and vibrations that are typical in milling applications away from the linear scales and display meter. Its small size and simple installation make setup more convenient.



Package included:



x1 TFT DRO SDS5-4VA

linear glass scales from the KA series, often models KA-600 or KA-300, x2 pc.

Additionally, the normal length of the extension signal line for scales is 3000mm, though customized lengths can be given.

as required by the users.(1M to 10M)



Package list:



Item name Four axes digital Readout system
DRO Model SDS5-4VA
Linear scale for axis X KA-600 / KA-300: 70-3000mm
Linear scale for axis Y KA-600 / KA-300: 70-3000mm
Rack for DRO Rack L400
Protection cover for X scale Type D / M
Protection cover for Y scale Type D / M
Bracket for scales

T-bracket (2 sets)

Others Cable / Screws / Manual





Detail Information:



CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision 0

CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision 1



Pin Description:

CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision 2



All linear scales will be tested before delivery. Here is a sample of a scale's test report.

CNC Milling SINO SDS5-4VA Digital Display Meter With 4 Linear Scales High Precision 3
