Sino SDS6-3VA 3 Axis Digital Measurement Using TTL Input And 0.005mm Resolution

Brand Name:	SINO
Model Number:	SDS6-3VA, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

Sino Digital Readout System SDS6-3VA: TTL Input And A 3 Axis Digital Readout With A Resolution Of 0.005 Mm

Number Of Axis:

Linear Scale Digital Readout On Three Axes

Signal:

Digital Readout: TTL / RS422/EIA-422-A

Material:

Iron/Metal

Voltage:

Digital Readout Systems: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Boring Machine, Lathe

Resolution:

1um,5um,0.5um, 0.1um

Supply Ability:

12000 pcs per month

Highlight:

3 Axis Digital Measurement

Sino SDS6-3VA 3 Axis Digital Measurement

Product Description

Sino SDS6-3VA 3 Axis Digital Measurement Using TTL Input And 0.005mm Resolution

Digital readout details:

One kind of digital display unit utilized in machine tools and other industrial equipment is the SINO SDS6-3VA Digital Readout System. It is produced by SINO, a business that specializes in producing digital readout systems and precise measurement devices.

Key features of the Sino SDS6-3VA DRO Set include

Three-axis measurement: Three axes, usually X, Y, and Z, can be measured and shown using the DRO system. This allows you to precisely track and manage your machine's position and motion as it is being machined.
High-resolution measurement: With a resolution of 0.005mm, the DRO system provides accurate measurement. This degree of precision aids in guaranteeing ensure precise machining results and dimensional control.

TTL input: The DRO system is compatible with TTL input signals, making it compatible with various optical encoder rulers commonly used in machine tools. This allows for reliable and accurate measurement data acquisition.

Optical encoder rulers: The DRO set includes linear scales with optical encoder rulers. These rulers are installed on the machine axes and work in conjunction with the DRO unit to provide accurate position feedback.

Lathe and milling machine compatibility: The SDS6-3VA DRO set is suitable for both lathe and milling machine applications, making it versatile for different machining processes.

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

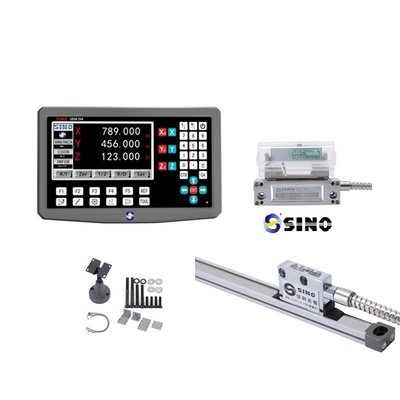

Sino SDS6-3VA 3 Axis Digital Measurement Using TTL Input And 0.005mm Resolution 0

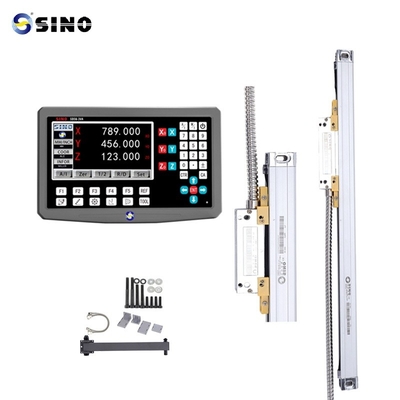

Sino SDS6-3VA 3 Axis Digital Measurement Using TTL Input And 0.005mm Resolution 1

The rack in the picture is optioned, not standard product.

Sino SDS6-3VA 3 Axis Digital Measurement Using TTL Input And 0.005mm Resolution 2
