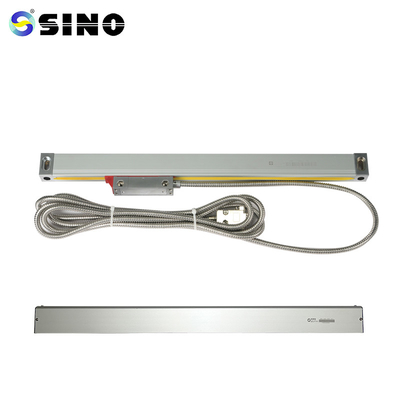

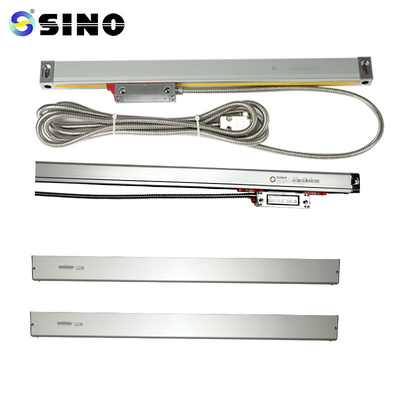

Lathe Boring Machines A Precise Aluminum Slim Linear Scale With EIA-422 Output

Brand Name:	SINO
Model Number:	KA500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Linear Scale SINO KA500 Optical Sensor

Application:

Compact Scale With Electronic Display

Usage:

Compact Scale With Electronic DisplayCompact Scale With Electronic Display

Customized Length:

70mm/120mm/170mm/220mm

Length:

320mm/370mm/420mm/470mm

Material:

Aluminum

Function:

EDM/Lathe/Grinding/Boring Machine

Resolution:

0.5/1/5 μm

Supply Ability:

3000 sets per month

Highlight:

Lathe Boring Machines Slim Linear Scale

Precise Aluminum Slim Linear Scale

EIA-422 Output Slim Linear Scale

Product Description

Lathe Boring Machines A Precise Aluminum Slim Linear Scale With EIA-422 Output

EIA-422 compliant precision aluminum slim linear scale with lathe, boring, and milling machine output

Features:

Thin Aluminum Design: The linear scale's thin, light aluminum structure allows it to be used in locations with limited space without sacrificing durability.
EIA-422 Output: The scale has an EIA-422 output, a digital communication protocol that is standardized. This enables dependable and fast data transfer between the controller of the machine and the scale.
High Precision: The linear scale's optical sensor technology, which offers choices for 5um or 1um resolution, guarantees high precision measurements that allow for precisely calibrated machining processes.
Robust Design: Constructed from aluminum, the linear scale has exceptional rigidity and longevity, making it able to survive the long-term rigors of lathe, boring, and milling operations.

Functionality:

On lathe, boring, and milling machines, precise linear displacement measurement is made possible by the Aluminum Slim Linear Scale with EIA-422 Output. It enables accurate and repeatable machining processes by giving the machine's controller exact position feedback. Reliable data transmission, minimal signal interference, and preservation of data integrity are all ensured by the EIA-422 output.

Usage:

The lathe, boring, and milling machines are the main applications for the compact linear scale, since these devices require accurate linear measurements. It is frequently used in metalworking sectors where accuracy and precision are necessary for high-quality results, such as production, fabrication, and precision engineering.

Package includes:

Glass linear scale, 1 piece, KA500-470mm

0.5/1/5 m of resolution is available.

Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA500-70	70	172	182	KA500-320	320	422	432
KA500-120	120	222	232	KA500-370	370	472	482
KA500-170	170	272	282	KA500-420	420	522	532
KA500-220	220	322	332	KA500-470	470	572	582
KA500-270	270	372	382

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Operating Guidelines:

The user must go through the General Description, Safety Considerations, and

the entirety of Chapter 1's content 3.

The General Description, the Safety Considerations, and all of the details in

The specialists must strictly abide by Chapters 1 through 3 when performing installation, testing, and maintenance.

understand every single concept from chapters 4-5.

This operation manual only addresses the SINO KA series of integrated circuits.

simple coding.

4. Please read the safety recommendations provided below. It contains essential information about

Use your linear encoder carefully.

Detail Information:

Lathe Boring Machines A Precise Aluminum Slim Linear Scale With EIA-422 Output 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
