Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

Certification
China Guangzhou Sino International  Trade Co.,Ltd certification
China Guangzhou Sino International  Trade Co.,Ltd certification
Customer Reviews
We purchased SINO products eight years ago. We don't restock the latest batch of DROs until 2022. Using SINO's products greatly facilitates our work. I sincerely hope that SINO can continue to develop and make more accurate products for us.

—— Charles

I'm Online Chat Now

Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale
Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

Large Image :  Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: KA500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

Description
Application: Linear Glass Encoder For Digital Display Systems Usage: Scaling Of Position Sensors
Customized Length: 70mm/120mm/170mm/220/270/320/370mm Length: 320mm/370mm/420mm/470/520/570/620mm
Material: Aluminum Function: Turning / Grinding / Boring Machine/EDM
Resolution: 0.5/1/5 μm
High Light:

1100mm Linear Position Optical Scale

,

Digital Readout Linear Position Optical Scale

Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

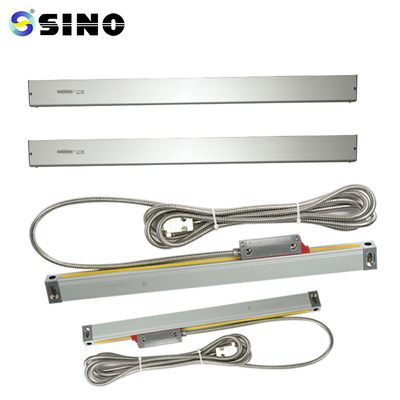

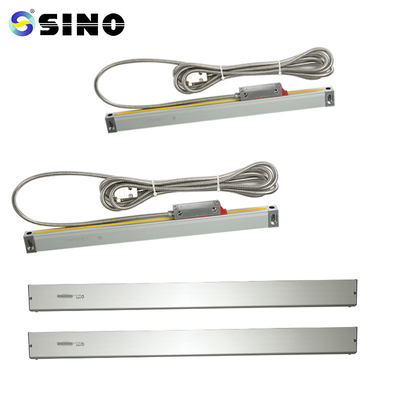

The SINO KA500 Optical Encoder Glass Linear Scale is designed for use with digital readout (DRO) systems and is a CNC linear encoder scale. It provides accurate and reliable measurement feedback for CNC machines, ensuring control and precision during machining operations. Its optical encoder technology ensures high resolution and durability, making it suitable for demanding industrial applications.



Features:



Premium Glass Construction: Crafted from high-quality glass, this linear scale ensures stability and durability, even in the most challenging machining environments. Its resistance to corrosion and mechanical wear contributes to its long-lasting performance.

CNC Compatibility: The KA500 linear scale is compatible with a wide range of CNC machines, enabling its use in diverse machining and manufacturing applications. Its seamless integration with CNC machine control systems ensures accurate positioning and motion control.

Easy Installation: Simplifying the installation process, the linear scale is equipped with mounting brackets and other accessories, facilitating quick and hassle-free setup. This streamlines the connection with existing CNC systems, promoting efficient implementation.

Versatile Length Options: Available in various lengths and travel distances, the KA500 linear scale offers versatility to accommodate different machine sizes. This flexibility allows users to select the most suitable scale length based on their specific machine requirements.



Functionality:


The SINO KA500 Optical Encoder Glass Linear Scale provides accurate and real-time position feedback for CNC machines. This enables operators to precisely manage machine movements, ensuring precise machining results and adherence to tight tolerances. With its high-resolution measuring capability, the linear scale ensures exceptional precision, enhancing the overall performance of CNC systems.

Application:

The KA500 linear scale is extensively used in CNC machining applications within the manufacturing, woodworking, and metalworking industries. It is well-suited for tasks such as milling, turning, grinding, and various CNC processes that require precise and consistent position feedback.

The KA-500 is a compact encoder specifically designed for machine tools with restricted installation and workspaces, meeting the specific positioning requirements of customers. Its dimensions are 70 mm by 470 mm.



Package includes:



Glass linear scale, 1 piece, KA500-470mm



0.5/1/5 m of resolution is available.

Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)



Model L0 L1 L2 Model L0 L1 L2
KA500-70 70 172 182 KA500-320 320 422 432
KA500-120 120 222 232 KA500-370 370 472 482
KA500-170 170 272 282 KA500-420 420 522 532
KA500-220 220 322 332 KA500-470 470 572 582
KA500-270 270 372 382



L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension



Operating Guideline



The operator must carefully review the General Description, Safety Considerations, and all content in Chapter 1.
In addition to the General Description and Safety Considerations, technicians responsible for installation, testing, and repairs must diligently adhere to the content of Chapters 1 through 3, and fully understand all sections of Chapters 4–5.
These operating instructions exclusively apply to SINO's KA series of integrated circuits for the linear encoder.
