SINO SDS5-4VA Digital Display DRO Lathe Machine Digital Encoder Glass Linear Scale

Description
Item Name: For CNC Milling, SINO SDS5-4VA Digital Display Meter Offers Four Linear Scales And Excellent Precision Usage: 4-axis CNC Drilling Tool
System: SDS5-4VA DRO System Scale Model: KA-300/KA-500/KA-600
Signal Output: EIA-422-A/RS422/TTL Resolution: 0.001 / 0.0005 Mm
Encoder Length: 70-3000mm Display Type: LCD
Interface: RS-232-C/ RS-485 Color: Black
High Light:

Glass Linear Scale DRO Lathe Machine

,

Digital Encoder Glass Linear Scale

SINO SDS5-4VA Digital Display DRO For Milling Lathe Machine With Digital Encoder Glass Linear Scale





SINO SDS5-4VA Digital Display Meter: 4 Linear Scales and Precision for CNC Milling



Product Description:



The SINO SDS5-4VA High Precision Digital Display Meter is a versatile and accurate measuring tool designed for CNC machine milling operations. It includes four linear scales, enabling precise positioning and simultaneous measurement along multiple axes during the milling process.



Key Features:



Clear and Easy-to-Read Display: The digital display meter of the SDS5-4VA provides clear and easily readable measurements. Operators can monitor the real-time movement of the CNC machine as the meter accurately displays position values from the linear scales.

Precision: The high precision of this digital display meter ensures accurate linear movements, facilitating precise cutting, drilling, and milling operations. This contributes to the production of high-quality finished products and reduces material waste.

Four Linear Scales: Equipped with four linear scales, the SDS5-4VA allows for simultaneous measurement along multiple axes. This functionality is particularly beneficial for CNC milling machines with multidirectional movements along the X, Y, and Z axes, enabling precise alignment and synchronized positioning during intricate milling tasks.

User-Friendly Interface: The digital display meter features an intuitive interface that simplifies operation. Operators can easily configure parameters, switch between measurement modes, and access additional features through its user-friendly controls and functionality.

Multiple Measurement Modes: The SDS5-4VA supports both absolute and incremental measurement modes. The incremental mode tracks relative movement from the previous location, while the absolute mode provides the actual position reading from the starting point. These modes offer adaptability to diverse milling processes and user preferences.

Compatibility: This digital display meter seamlessly integrates into existing systems and is compatible with CNC milling machines. It can interact with other CNC components such as motors and controllers, supporting common communication protocols to ensure precise coordination and synchronization.

Ease of Use and Robust Design: Designed to withstand the demands of industrial environments, the SDS5-4VA features a robust enclosure that protects the linear scales and display meter from dust, debris, and vibrations commonly encountered in milling applications. Its compact size and straightforward installation process contribute to convenient setup.



Package included:



1x TFT DRO SDS5-4VA
2x linear glass scales from the KA series, typically models KA-600 or KA-300.
The standard length of the extension signal line for scales is 3000mm, but customized lengths from 1m to 10m can be provided as per user requirements.



Package list:



Item name Four axes digital Readout system
DRO Model SDS5-4VA
Linear scale for axis X KA-600 / KA-300: 70-3000mm
Linear scale for axis Y KA-600 / KA-300: 70-3000mm
Rack for DRO Rack L400
Protection cover for X scale Type D / M
Protection cover for Y scale Type D / M
Bracket for scales

T-bracket (2 sets)

Others Cable / Screws / Manual





Detail Information:

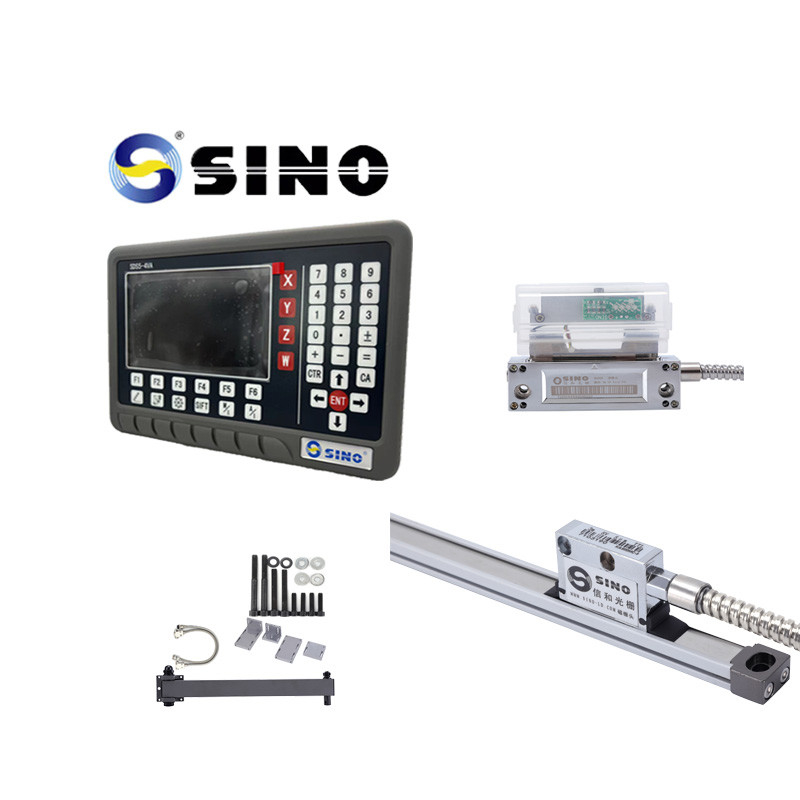

SINO SDS5-4VA Digital Display DRO Lathe Machine Digital Encoder Glass Linear Scale 0

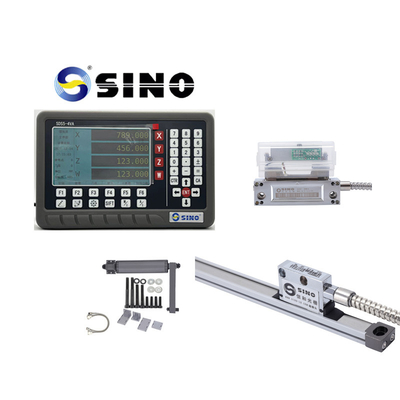

SINO SDS5-4VA Digital Display DRO Lathe Machine Digital Encoder Glass Linear Scale 1
