SINO SDS2-3VA 3axis Digital Readout Led Screen Digital Readout Dro For Milling Machine

SINO SDS2-3VA 3axis Multi-Function Digital Readout,Led Screen Digital Readout Dro For Milling Machine/Edm

SINO 3-axis DRO with TTL input for precise lathe and milling measurements

Product Description:

The SINO 3-axis DRO (Digital Readout) is tailored for milling machines and lathes, offering precise and instant measurements of the X, Y, and Z axes. This facilitates accurate positioning and control during machining operations. The DRO system is equipped to accept TTL input signals, ensuring adaptability to a variety of scales utilized in milling machines and lathes.

Key Features:

3-Axis Measurement: The SINO DRO enables three-axis measurement, typically for the X, Y, and Z axes. It accurately presents the position of each axis, empowering operators to effectively monitor and control their machining operations.

Digital Readout: The DRO system features a digital display that showcases real-time measured positions. The clear and easy-to-read display allows for swift and accurate readings of the machine's coordinates.

TTL Input Signal: The SINO DRO accepts TTL (Transistor-Transistor Logic) input signals, commonly used with linear scales and rotary encoders in milling machines and lathes. This ensures compatibility and seamless integration with existing measurement systems.

High Accuracy and Resolution: The DRO system delivers high accuracy and resolution, facilitating precise measurement and control of the machine's movements. This is crucial for achieving tight tolerances and producing high-quality machined parts.

User-Friendly Interface: The SINO DRO is designed with a user-friendly interface, ensuring intuitive operation. The menu options and navigation are straightforward, enhancing the user experience and minimizing setup time.

Multiple Display Modes: The DRO system offers various display modes, including absolute and incremental measurements, inch/metric conversion, and preset values. These modes provide flexibility and customization options to meet specific machining requirements.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA offers a versatile display console with high performance, catering to milling, lathe, and grinding applications. This three-axis unit accommodates the connection of up to three linear encoders, with additional interfaces available for axis combination or customization to suit equipment from other manufacturers. Please consult the encoder compatibility guide provided below.

The robust die-cast casing is complemented by a durable front panel membrane that offers tactile feedback. The console features a large, easily readable LCD screen.

Key features include PCD, line of holes, 200 zero memory, radius/diameter display, and tool offset capabilities.

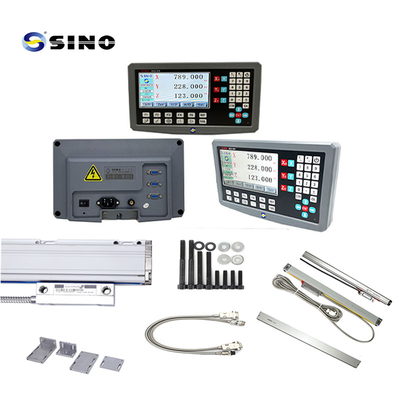

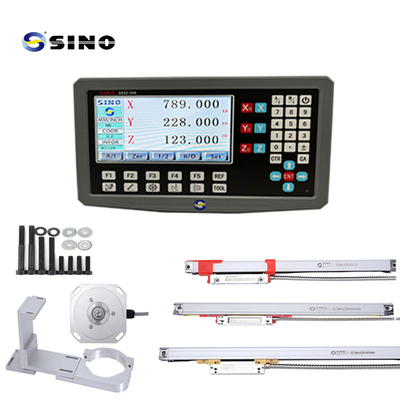

Product image /photos:

The rack in the picture is optioned, not standard product.
