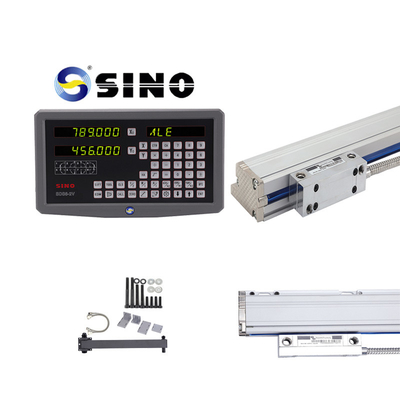

SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine

SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine
SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine

Large Image :  SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-2V,KA200/300/500/600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine

Description
Name: SDS6-2V 2/3 Axis Dro Digital Readout Display Linear Scale Encoder,Milling Machine Suitable For: Machines For Milling, Turning, Drilling, Electrical Discharge Machining, And Grinding
Power Source: ELectricity Display: LED
Signal: RS422/TTL Voltage Range: 50-60Hz, AC 100-240V
Number Of Axes: 2 Axis Resolution-μm: 0.5/1.5/5
Effective Range: 30~3000mm
High Light:

Milling Machine Dro Digital Readout Display

,

2-Axis Dro Digital Readout Display

SDS6-2V 2/3 Axis Dro Digital Readout Display With Linear Scale Encoder For Milling Machine Lathe/grinding Machine





Leveraging the latest 16-bit microcontroller technology, the SDS6-2V digital readout is a versatile DRO capable of replacing any basic or specialized function required by the SDS2 series.



Basic SDS6-2V Digital Readout Functions



Auxiliary zero position function with 200 points
Center split display option
Switchable "mm/inch" conversion display
Diameter and radius switchable display
Compensation for segmented errors
Linear error compensation
Power interruption memory
Sleep mode function
Mathematical calculations
Optional RS-232-C interface



The enhanced functions of the Sino Digital readout system SDS6-2V DRO



Machining Applications
PCD circular division (applicable to milling machines and spark testers)
Involute cavity cutting capability (compatible with milling machines)
Bevel and angular surface finishing (specific to milling machines)
N3 function (exclusive to milling machines)
Diagonal boring with the use of a milling machine
R-arc function (particular to milling machines)
Measurement function (designed for lathe use only)
Comprehensive 200-piece tool set (includes lathe tools)
Vibration reduction feature (pertaining to grinding machines)



Specifications :



The DRO SDS6-2V is a dual-axis digital readout with a wide range of features. Its configuration can be adjusted to meet different processing requirements. In addition to various visual processing functions, it can perform tasks such as arc calculation, drilling at right angles to straight lines, evenly spaced hole drilling around a circle, processing surfaces with angles, measuring tapers, calculating angles, and applying digital filters. These capabilities enhance the usability of visual functions. It is the first factory in China to utilize 16-bit and 32-bit processors in the DRO system. With an input frequency of up to 5MHz, the DRO system boasts the world's highest a/B ratio.



Model No:



SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function



Characteristic​:


Imported microchips
Industrial-grade quality

High-precision data transmission
Enhanced resistance to interference
Function key for machine output (EDM)



Packaging List :

1 PC 2 Axis LED digital readout SDS6-2V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

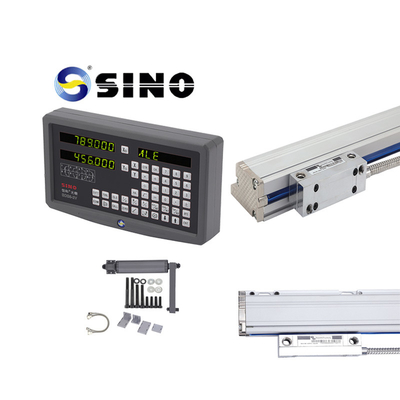

SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine 0

SINO SDS6-2V 2-Axis Dro Digital Readout Display Linear Scale Encoder Milling Machine 1

The rack in the picture is optioned, not standard product.
