SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um
SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um
SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um

Large Image :  SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-3V
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um

Description
Name: Digital Readout For Lathe, Grinding, And Cutting Equipment Number Of Axis: 3-axis Readout Counter With Display
Color: Grey Display: 7 Digits LED
Signal: Digital Readout Systems: TTL / RS422/EIA-422-A Voltage: Digital Readout: AC100-240V / 50-60Hz
Suitable For: Milling Machine, Lathe, Boring Machine, EDM Machine, Grinding Machine
High Light:

Lathe Machine Glass Linear Scale Meter

,

3 Axis Glass Linear Scale Meter

,

1um Glass Linear Scale Meter

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine With Digital Readout DRO 3 Axis 1um





The SDS6-3V is a high-performance universal display console that may be used for turning, grinding, and milling.
All of the fundamental and distinctive features of the SDS2 Series, an all-purpose DRO, may be replaced by the SDS6 Digital Readout, which makes use of the most recent 16-bit SCM technology.



Improved Sino Digital Readout DRO Functions



Increase the calculator's functionality: In addition to being included in the DRO programs for the milling, lathe, and EDM machines, users should be able to select the number of digits to be placed behind the radix point, such as 3, 4, or 5.

Non-linear error compensation: To increase machining precision, the system contains a maximum of 40 sections of non-linear error compensation.
3. The number of decimal digits in inch display mode can be selected.

There are two options for the number of decimal digits: four or five. The demand for lengthy scales can be met with four digits, and the condition for high precision can be met with five digits. Please refer to the manual for further information on the differences.



Specifications :



Range of supply voltage: AC 80V–260V; 50–60Hz; US Plug compatible
15VA of power usage
Operating temperature: between 0 and 45 degrees Celsius

Temperature range for storage: -30 to 70 degrees Celsius

Readout permitted input signal: square wave TTL/RS422

Frequency of admissible input signal: less than 5 MHz

Resolution of display: 5 µm/1 µm/0.5 µm/0.1 µm

Digital display angle minimum resolution: 0.0001/pulse



Packaging List :

1 PC 3 Axis LED digital readout SDS6-3V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

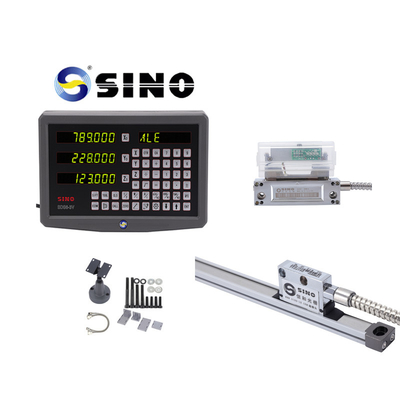

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um 0

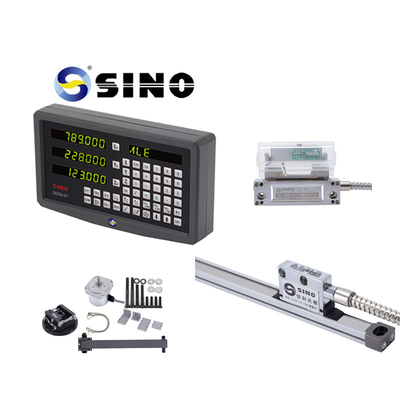

SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um 1

The rack in the picture is optioned, not standard product.



SINO SDS6-3V Glass Linear Scale Meter Lathe Machine Digital Readout DRO 3 Axis 1um 2
