16-Bit SCM Technology 50–60 Hz LED DRO Measuring Systems SDS6-3V

Brand Name:	SINO
Model Number:	SDS6-3V
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SDS6-3V Digital Readout

Number Of Axis:

Three-axis Display Suggestion

Case:

Metal Housing

Display:

7 Digits LED / Green Color

Signal:

Digital Readout: TTL / RS422/EIA-422-A

Voltage:

Digital Readout: 50–60 Hz / AC100–240V

Usage:

All Kinds Of Machine

Supply Ability:

1000 pcs per month

Highlight:

SDS6-3V LED DRO Measuring Systems

60 Hz LED DRO Measuring Systems

Product Description

16-Bit SCM Technology 50–60 Hz LED DRO Measuring Systems SDS6-3V

The best-selling series is SDS6-3V, which is the version with a three-axis display. That is an all-purpose DRO with a faster measuring speed and a simpler, more seamless control mechanism.

Utilizing the most recent 16-bit SCM technology, it may replace any basic function found in a variety of machine types. such as the milling machine, lathe, EDM, grinding machine, and high precision coordinate boring machine.

Up to 5MHz of high frequency A/B signal input is permitted. To improve accuracy, each axis has the capacity to provide 40 non-linear compensation points.

Improved Functions:

Expand the function of the calculator: SDS6 can increase the precision of calculations by changing the decimal digits to three, four, or five.

Non-linear error compensation: To increase the precision of the machining, the system features a maximum of 40 sections of non-linear error compensation.

Inch mode allows the user to select 4 or 5 decimal digits out of the available options. Long scale requirements can be met with four digits, and high precision display can be met with five digits.

Specifications :

Communication: An RS-232-C interface and an EDM matching output may be needed.
Range of supply voltage: AC 80V–260V; 50–60Hz; US Plug compatible
15VA of power usage
Operating temperature: between 0 and 45 degrees Celsius
Temperature range for storage: -30 to 70 degrees Celsius
Readout permitted input signal: square wave TTL/RS422
Frequency of admissible input signal: less than 5 MHz
Resolution of display: 5 µm/1 µm/0.5 µm/0.1 µm
Minimum resolution of digital display angle : 0.0001/pulse

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

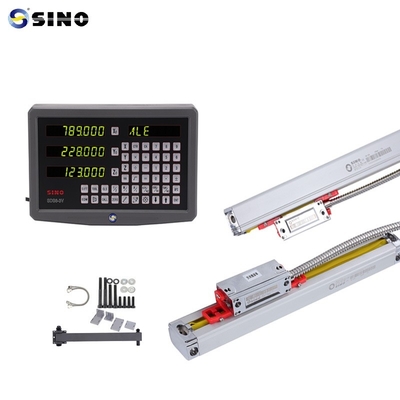

16-Bit SCM Technology 50–60 Hz LED DRO Measuring Systems SDS6-3V 0

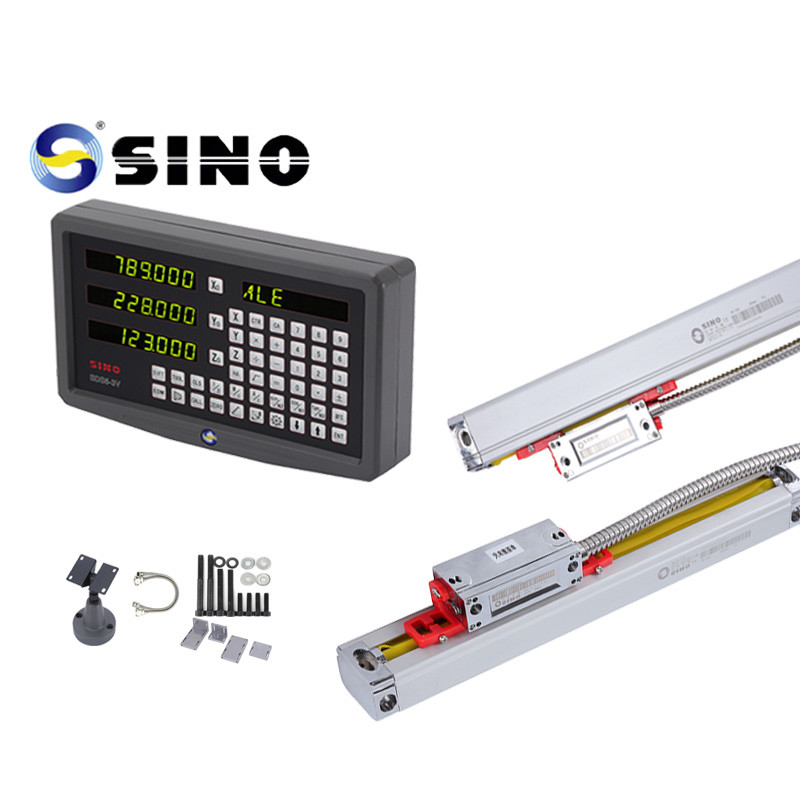

16-Bit SCM Technology 50–60 Hz LED DRO Measuring Systems SDS6-3V 1

16-Bit SCM Technology 50–60 Hz LED DRO Measuring Systems SDS6-3V 2

The rack in the picture is optioned, not standard product.

16-Bit SCM Technology 50–60 Hz LED DRO Measuring Systems SDS6-3V 3
