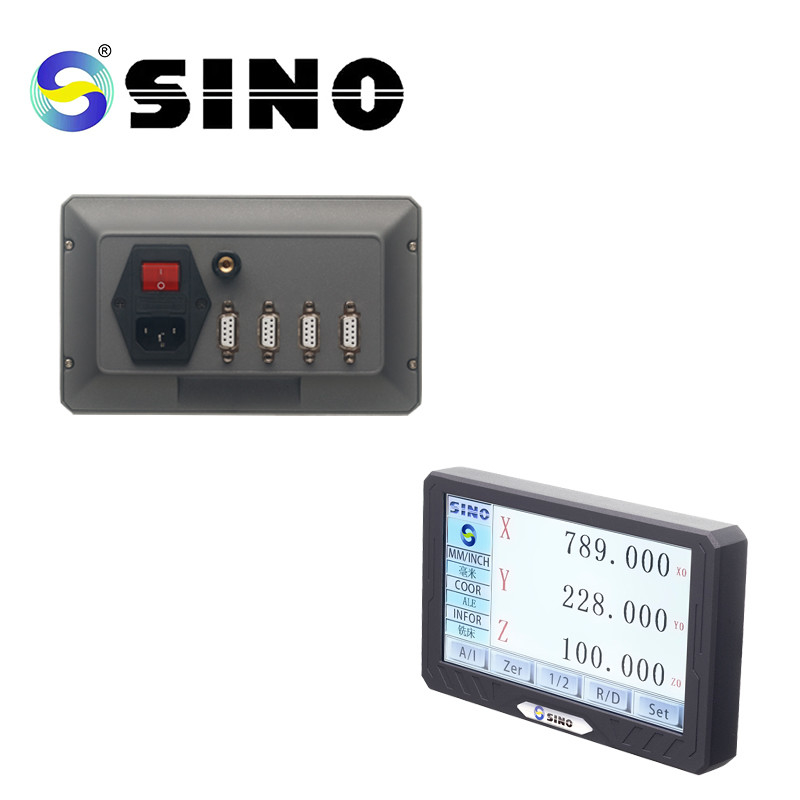

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder

Brand Name:	SINO
Model Number:	SDS200s, KA-600, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Readout Kit For 3 Axis Mini Size Metal LCD Milling Machine

Usage:

Milling Machine， Boring Machine

System:

SDS200s Large Size Milling Readout

Scale Model:

Linear Scale Rulers: KA-600, KA-300, KA-500

Signal:

Linear Rulers: TTL / RS422

Resolution:

Linear Rulers: 0.005mm/0.001mm

Voltage:

Readout Power: AC 100V-240V

Meas. Travel:

Linear Rulers:1000-3000mm, 70-1020mm

Supply Ability:

3000 sets per month

Highlight:

SINO SDS200S Digital LCD Readout Display

Three-Axis Digital LCD Readout Display

Product Description

For Sale Is A Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder

The kit is specifically made to fit the requirements of tiny, three-axis milling machines.

There are two standard linear rulers (KA-600 or KA-300) and one LCD display readout (SDS200s).

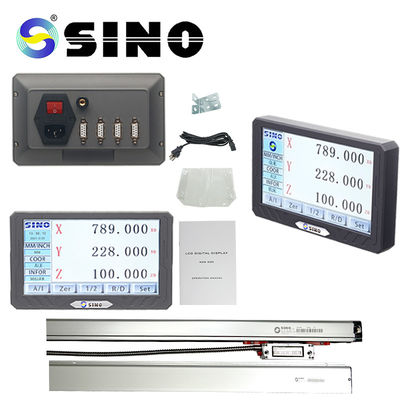

Package list:

Item name	3 axis mini size metal LCD milling machine Readout kit
Digital Readout (DRO)	SDS200
Linear scale for axis X	1000-3000mm
Linear scale for axis Y	70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type M
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 or 2 sets, depend on the size)
Others	Cable / Screws / Manual

Advantages

-Five language options for support: English, Chinese, German, French, and Spanish

-Touch Screen: easy to use

- Straightforward, effective system

-A sizable LCD display with readable text

Features

The LCD display works with all Chinese optical linear glass scales and is commonly found in lathe, drilling, boring, and milling equipment.

The ability of lathes and mills to flip between five distinct languages on a single display, lathes and milling machines are more advantageous for users from various nations.

Measurement

SDS200S type
The input voltage spans between 240V and AC80V.
receiving a TTL signal

as a material, satisfied

Al addresses

EU, USA, UK, and so forth.

Detail Information:

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder 0

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder 1

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder 2

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder 3

Pin Description:

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Three-Axis Digital LCD Readout Display SINO SDS200S Linear Optical Encoder 5
