Four-Axis Linear Scale Encoder System, DRO SINO SDS5-4VA Mill Digital Readout Kit

Brand Name:	SINO
Model Number:	SDS5-4VA, KA300, KA500, KA700
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,ROHS

Name:

Sino SDS5-4VA Digital Readout Linear Encoder With Display

Number Of Axis:

Four-Axis DRO Measurement Device

Color:

Grey

Signal:

Digital Readout Kits: TTL / RS422 / EIA-422-A

Voltage:

Controller For Digital Display: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Boring Machine, EDM Machine

Resolution:

1um,5um,0.5um

Material:

Metal

Supply Ability:

1000 pcs per month

Highlight:

Four-Axis Linear Scale Encoder System

DRO Linear Scale Encoder System

Product Description

Four-Axis Linear Scale Encoder System, DRO SINO SDS5-4VA Mill Digital Readout Kit

Path summarization is another feature included in DRO. Following selection, the program is used right away in lathes, EDM, precision grinding machines, milling machines, precision coordinate boring machines, ground boring machines, precision boring machines, and other specialized functions.

SDS5-4VA DRO Digital Readout DRO Functions:

Restitution for Non-Linear Mistakes
Setting Up a PCD Hole Around a Boundary
200-Point Auxiliary Zero Position Function
ROM disc having a large storage capacity
Real-time coordinate communication using RS232
USB file transfer capabilities
The machine coordinate system is one of the four coordinate systems used by this system.

Specifications of SINO SDS5-4VA digital readout system + Optical Linear Scale

Details
SINO SDS5-4VA Digital Readout System
Sort: DRO Luxurious Sort
four-axis input
Output signal: TTL/RS-422
Housing: Metal
Glass scales for EDM, drilling, grinding, and lathe machines—manually operated or CNC
Position-measuring Tool for Grating Scales with One, Three, or Four Axes
Guarantees: ISO 9001, CE, and ROHS
Sealing Protection Class IP67
robust and long-lasting, easy to install, and intuitive
The report on the machine test is available.

Packaging List :

1 PC	3 Axis LED digital readout SDS5-4VA
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

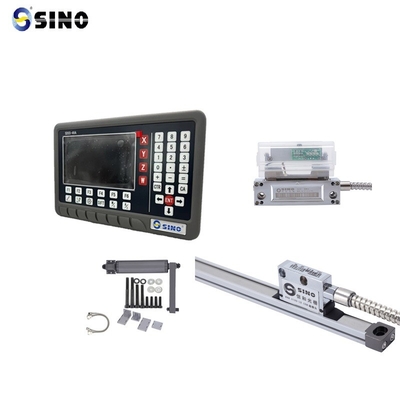

Four-Axis Linear Scale Encoder System, DRO SINO SDS5-4VA Mill Digital Readout Kit 0

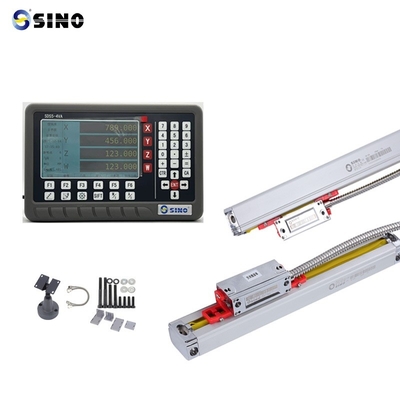

Four-Axis Linear Scale Encoder System, DRO SINO SDS5-4VA Mill Digital Readout Kit 1

The rack in the picture is optioned, not standard product.

Four-Axis Linear Scale Encoder System, DRO SINO SDS5-4VA Mill Digital Readout Kit 2
