SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder

SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder
SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder

Large Image :  SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS2-3VA, KA300
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100000 pcs per month

SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder

Description
Name: SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder Number Of Axis: 3 Linear Scales Encoder 3 Axis DRO System
Color: Grey/black-Colors Signal: TTL / RS232C
Voltage: AC100-240V / 50-60Hz Suitable For: Grinding Machine, EDM Machine,lathe Machine
Resolution: 1.5um,5um,0.5um Material: Metal/iron/plastic
Weight: 1000

SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder



Features:



Digital Readout Unit: The SDS2-3VA digital readout unit is a top-of-the-line device that showcases precise numerical readings of the machine axes. It boasts advanced functionalities such as metric and inch conversion, zero setting capability, and data storage features.

KA300-70mm Linear Scale Optical Encoder: Each axis is equipped with a KA300-70mm linear scale optical encoder, leveraging high-precision encoding principles to deliver accurate position feedback crucial for machining operations.

LCD Display: Featuring an LCD display, the digital readout unit presents measured values with clarity, ensuring effortless readability and operation for users.

Easy Installation: Designed for user convenience, the system comes with all essential mounting brackets, cables, and accessories for straightforward installation.

Versatile Application: With compatibility across a broad spectrum of milling and lathe machines, the digital readout system enhances precision and accuracy in diverse machining operations.



Advantages



Multi-Language Support: The DRO system accommodates five languages: French, German, Spanish, English, and Chinese, ensuring accessibility for users across different linguistic backgrounds.

User-Friendly Interface: Designed for ease of use, the system features a basic and intuitive interface, allowing users to navigate and operate the device effortlessly.

Large LCD Display: Equipped with a spacious and highly clear LCD screen, the DRO provides a crisp and easily readable display of measurement readings and settings.

Compatibility with Chinese-Made Linear Scales: The DRO seamlessly integrates with all Chinese-made linear scales, ensuring versatile compatibility and facilitating hassle-free installation and operation.



SDS2-3VA LCD DRO Features:



The SDS2-3VA model is commonly utilized in lathe, drilling, boring, and milling equipment. Its LCD display is universally compatible with all Chinese optical linear glass scales, offering convenience and versatility to a wide range of users.

Notably, the ability to switch between Chinese and English on a single display is particularly beneficial for international users of milling machines and lathes.

Technical Specifications:
- Input voltage: AC80-240V
- Signal input: TTL
- Housing: Plastic cover
- Plug Types: AU, EU, US, UK, and others



Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA stands out as a high-performance universal display console suitable for milling, latheing, and grinding applications. It supports up to three linear encoders for three-axis operation. Additionally, it offers various interfaces for combining axes or adjusting inputs to accommodate equipment from other manufacturers. Please refer to the encoder compatibility guide for further details.

Key Features:
- Robust die-cast housing ensures durability, with a tactile front panel membrane for enhanced usability.
- Large LCD panel provides excellent readability, even in challenging working environments.
- Advanced features include PCD (Pitch Circle Diameter) calculation, line of holes, 200 zero memory for easy reference, radius/diameter display, and tool offsets, enhancing versatility and efficiency in machining operations.



Packaging List :

1 PC 3 Axis LED digital readout SDS2-3Va
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

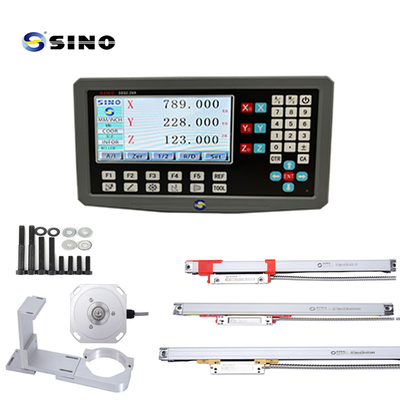

SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder 0

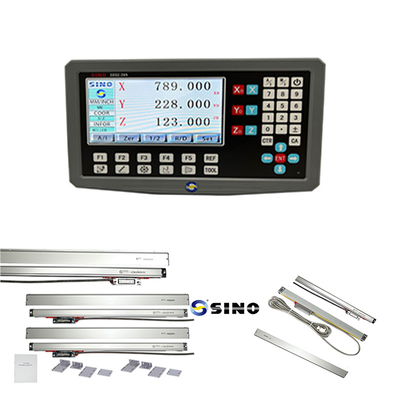

SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder 1

The rack in the picture is optioned, not standard product.

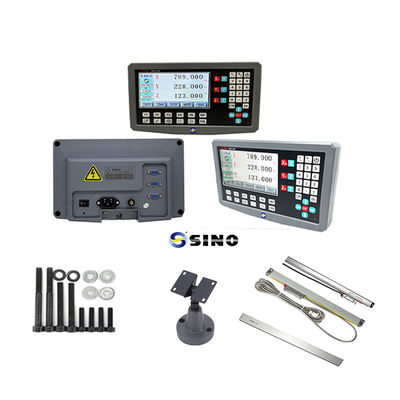

SINO SDS2-3VA LCD DRO 3-Axis Digital Readout System For Boring, And Milling With Encoder 2
