SINO SDS2-3VA 3 Axis DRO Digital Readout 3 Sino Linear Scale Encoder For Lathe Milling

SINO SDS2-3VA 3 Axis DRO Digital Readout 3 Sino Linear Scale Encoder For Lathe Milling

Key Features:

1️⃣ 3-Axis Capability: The SDS2-3VA DRO meter is equipped to simultaneously monitor and control 3 axes, making it well-suited for machinery with multiple axes such as milling machines, lathes, and grinders, enhancing efficiency and precision in machining operations.

2️⃣ KA300 Glass Linear Ruler: Compatible with the KA300 glass linear ruler, this digital readout meter ensures accurate and reliable measurements, facilitating precise positioning and machining processes.

3️⃣ TTL/RS422 Signal: Supporting TTL/RS422 signals, the SDS2-3VA ensures dependable communication between the digital readout meter and the linear ruler, enabling accurate data transmission critical for achieving precise machining results.

4️⃣ Digital Display: Featuring a digital display, the meter provides real-time measurements, offering operators clear visibility of machining parameters for enhanced monitoring and control of the machining process.

5️⃣ User-Friendly Interface: With a user-friendly interface, the DRO meter facilitates easy setup, customization, and operation, allowing operators to efficiently configure and utilize the device according to their specific machining requirements.

These features greatly enhance the usability of the graphics function. This marks the first instance in China of incorporating a 16- and 32-bit calculator into a DRO system, while the input frequency of the DRO system, reaching up to 5MHz with A/B, ranks among the highest globally.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential Division: Ideal for spark testers and milling machines, this function facilitates precise division for PCD applications.
Involute Chamber Machining: Specifically designed for milling machines, this function enables efficient machining of involute chambers.
Bevel Machining and Angular Surface Processing: Tailored for milling machines, this feature supports bevel machining and processing angular surfaces.
N3 Function: Geared towards milling machines, the N3 function provides specialized capabilities for enhanced machining operations.
Diagonal Boring with a Milling Machine: Allows diagonal boring operations using a milling machine for versatile machining tasks.
R-Arc Function: Exclusive to milling machines, the R-Arc function assists in creating arc profiles with precision.
Taper Measurement Function: Exclusively for lathes, this function facilitates accurate taper measurements.
200-Tool Collection: Designed for lathes, this feature enables the storage and management of up to 200 tools for enhanced operational efficiency.
Anti-Dithering Function: Tailored for grinding machines, this function helps prevent dithering during grinding processes, ensuring consistent and high-quality results.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA is equipped with convenient preset functions that enable users to store and easily recall specific measurement values. This feature proves especially valuable for repetitive machining tasks that require consistent and accurate measurements.

Error Compensation: To account for machine tool inaccuracies or measurement errors, the system may offer error compensation capabilities. By calibrating the system and applying compensation values, it enhances overall measurement accuracy, ensuring precise machining results.

Data Interface: Certain versions of the SDS2-3VA digital readout system incorporate data interfaces such as RS-232 or USB. These interfaces facilitate seamless data transfer and communication with external devices, including computers or data logging systems. This enables efficient connectivity and allows for quality control processes such as data analysis and record-keeping.

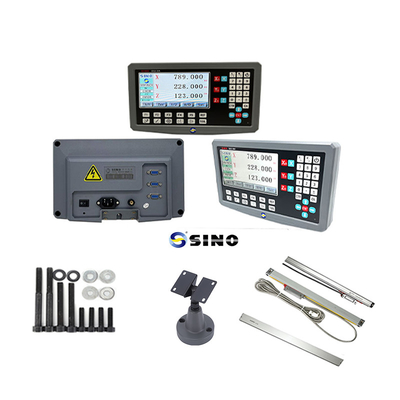

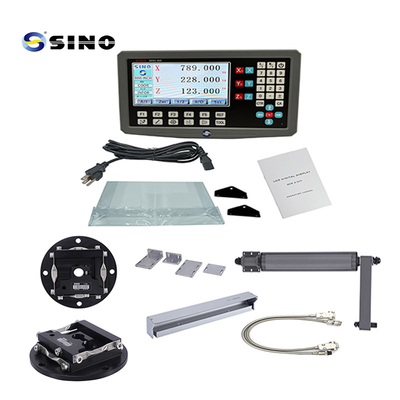

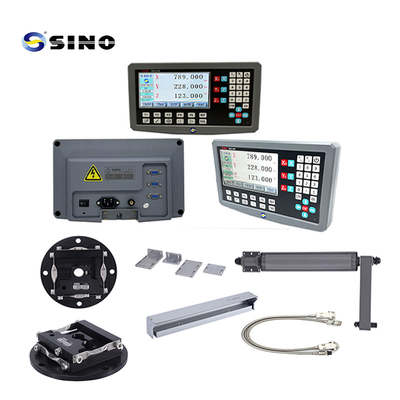

Product image /photos:

The rack in the picture is optioned, not standard product.
