SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder

SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder
SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder

Large Image :  SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS2-3VA, KA300
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 12000 pcs per month

SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder

Description
Name: SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder Number Of Axis: 3 Axis DRO System 3 Linear Scales Encoder
Color: Grey/black Signal: TTL / RS422
Voltage: AC100-240V / 50-60Hz Suitable For: Grinding Machine, EDM Machine,lathe
Resolution: 1um,5um,0.5um,1.5um Material: Metal
High Light:

Optical Encoder Digital Readout System

,

SINO SDS2-3VA Digital Readout System

SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder





LCD Display: The digital readout unit is equipped with a user-friendly LCD display, presenting precise and easily readable numerical reading for improved visibility and user convenience.

SDS2-3VA Digital Readout: With the SDS2-3VA digital readout unit, the system guarantees exceptional precision and accuracy in measuring the machine axes' positions, ensuring dependable results for both milling and lathe operations.

KA300-70mm Linear Scale Optical Encoder: The robust KA300-70mm linear scale optical encoder is engineered for durability and offers outstanding resistance to environmental factors, ensuring reliable position feedback even in challenging working conditions.

3-Axis Measurement: Supporting three machine axes, the system enables simultaneous measurement and monitoring of their positions, enhancing operational control and efficiency.

Easy Installation: Designed for seamless integration into milling and lathe machines, the system facilitates straightforward installation, allowing for smooth incorporation into existing setups.



Suitable Applications:



Milling Machines: The 3-axis digital readout system is specifically designed to meet the needs of milling machines, offering crucial measurement feedback for precise and efficient machining operations.

Lathe Machines: The system is equally well-suited for lathe machines, providing accurate positioning capabilities for cutting tools and workpieces, ensuring optimal results in turning operations.

Precision Engineering: Industries involved in precision engineering, including aerospace, automotive, and tool manufacturing, can greatly benefit from the exceptional accuracy and reliability offered by this digital readout system. It enables precise control over machining processes, resulting in high-quality and consistent output.



Advantages



- The system supports five languages: French, German, Spanish, English, and Chinese, ensuring accessibility for a diverse user base.

- It features a basic and user-friendly interface, promoting ease of use for operators at all levels of expertise.



- The large, highly clear LCD screen enhances visibility and readability, providing users with precise measurement data at a glance.



- The DRO is designed to be compatible with all Chinese-made linear scales, offering flexibility and adaptability to different equipment configurations.



SDS2-3VA LCD DRO Features:



The LCD display, commonly found in lathe, drilling, boring, and milling equipment, is compatible with all Chinese optical linear glass scales, ensuring seamless integration with various machinery.

One notable advantage of this display is its ability to switch between Chinese and English languages on a single screen. This feature greatly benefits users of milling machines and lathes from different countries, allowing them to operate the system comfortably in their preferred language.



Assessment

The model SDS2-3VA

Input voltage: AC80-240V

TTL signal input

Made of plastic cover

Plug: AU, EU, US, UK, and so forth.



Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA is a high-performance universal display console that may be used to mill, lathe, and grind.
3-axis type allows for the connection of up to three linear encoders. Other connections are available to combine axes or modify the input to fit equipment made by other manufacturers. Please refer to the encoder compatibility guide below.
Durable die-cast housing with a long-lasting and tactile front panel membrane.
Large LCD panel with good readability.
The features include PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets.



Packaging List :

1 PC 3 Axis LED digital readout SDS2-3Va
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable

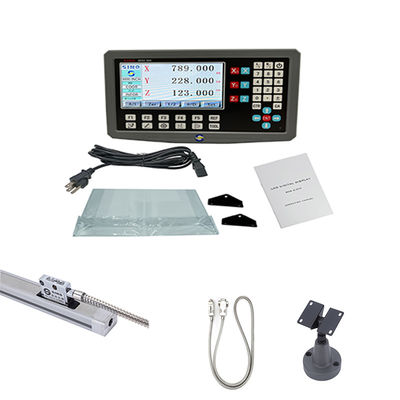

Product image /photos:

SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder 0



SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder 1

The rack in the picture is optioned, not standard product.



SINO SDS2-3VA 3-Axis Digital Readout System With KA300-70mm Linear Scale Optical Encoder 2
