SINO SDS6-3V 2/3 Axis Digital Readout Class Linear Endoder Scale KA600-1300mm DRO Display 5um

SINO SDS6-3V 2/3 Axis Digital Readout Class Linear Endoder Scale KA600-1300mm DRO Display

The 2/3 Axis Digital Readout SINO SDS6-3V with KA600-1300mm Linear Scale DRO Display offers precise measurement with a 5-micron resolution, ideal for enhancing accuracy in your machining operations.

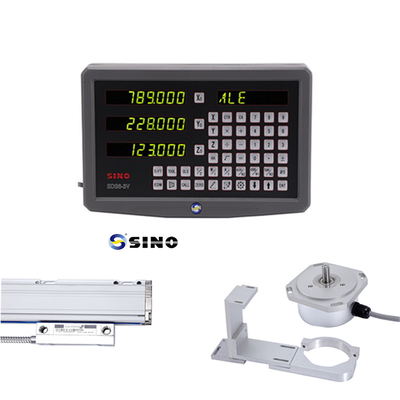

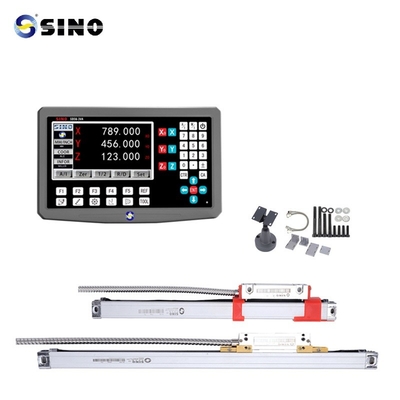

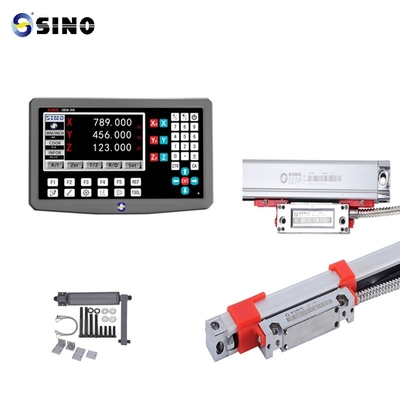

Package includes:

Linear glass scale, 500-1200 mm, single piece.
There is a 0.5/1.5um resolution available.
Customers can have encoder lengths (L0) customized to meet their specific demands.(Length:1000-3000mm)
Single-Turn Versus Multi-Turn: Absolute encoders can be either single-turn or multi-turn encoders. Single-turn encoders offer position information within one full revolution (360 degrees), whereas multi-turn encoders provide position information over many revolutions. Multi-turn encoders feature additional sensing elements or processes that count the number of full revolutions.
Output: An electronic circuit in the encoder processes the electrical signals provided by the optical sensors, converting them into a digital or analog output indicating the absolute angular position. This output can be transferred to a digital display, a controller, or a computerized system for subsequent processing and control.

Accuracy and Precision:Absolute optical angle encoders are renowned for their remarkable accuracy and precision. Accuracy is generally defined as the maximum deviation from the actual position, whereas precision pertains to the encoder's capacity to detect minute angular variations.

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

The KA-600 encoder, tailored for large machine tools, boasts substantial dimensions and excellent rigidity. Additional support can be integrated at any position of the encoder to bolster its rigidity and stability. It is available in lengths ranging from 1000 to 3000mm.

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
