Digital Readout Scales With Several Uses, RoHS IP53 Sealed Linear Scale Encoders

Large Image : Digital Readout Scales With Several Uses, RoHS IP53 Sealed Linear Scale Encoders

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE, RoHS
Model Number:	KA300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

Digital Readout Scales With Several Uses, RoHS IP53 Sealed Linear Scale Encoders

Description

Item Name:	Linear Grating Scale SINO KA300	Application:	Closed Linear Encoders KA300
Usage:	Sensor Position Scaling	Customized Length:	370mm/570mm/670mm/770mm
Length:	Customized	Function:	Digital Readout System For Milling Machine, Griding Machine
Customized Resolution:	0.1/0.5/1/5 μm	Sealing Protection:	IP53
Highlight:	RoHS Sealed Linear Scale Encoders , Digital Readout Sealed Linear Scale Encoders , IP53 Sealed Linear Scale Encoders

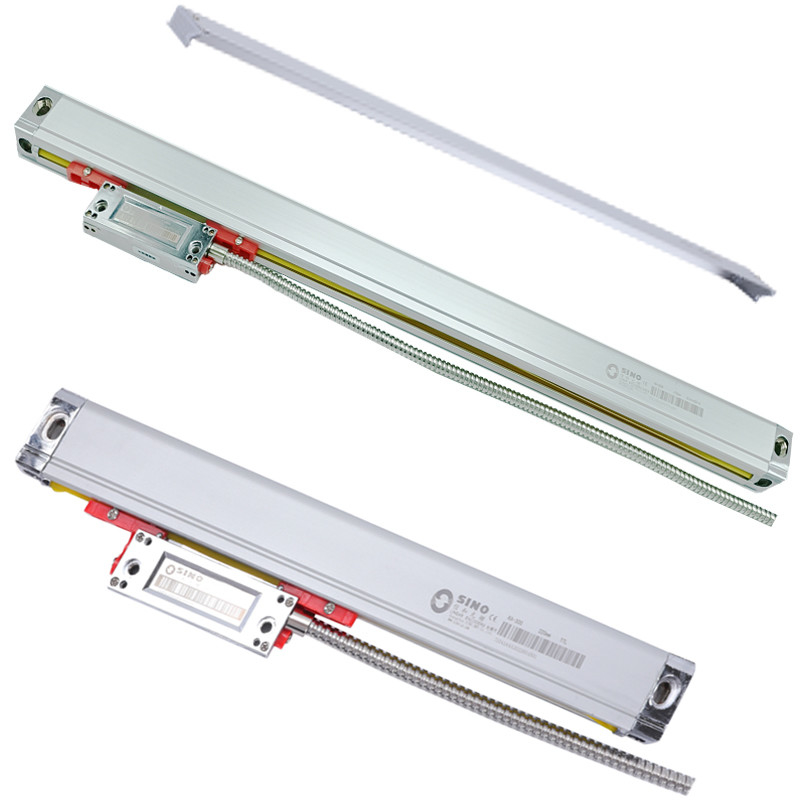

SINO KA300-370mm Sealed Linear Scale Encoder For Digital Readout System

Package included:

One piece of KA300-370mm Linear Encoder

The available resolution is 0.1/0.5/1/5 μm.

Users can request encoder lengths (L0) that are customized to meet their needs. (Length: 70–1020 mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA300-70	70	160	176	KA300-570	570	660	676
KA300-120	120	210	226	KA300-620	620	710	726
KA300-170	170	260	276	KA300-670	670	760	776
KA300-220	220	310	326	KA300-720	720	810	826
KA300-270	270	360	376	KA300-770	770	860	876
KA300-320	320	410	426	KA300-820	820	910	926
KA300-370	370	460	476	KA300-870	870	960	976
KA300-420	420	510	526	KA300-920	920	1010	1026
KA300-470	470	560	576	KA300-970	970	1060	1076
KA300-520	520	610	626	KA300-1020	1020	1110	1126

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

Digital Readout Scales With Several Uses, RoHS IP53 Sealed Linear Scale Encoders 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

Digital Readout Scales With Several Uses, RoHS IP53 Sealed Linear Scale Encoders 1
