SINO SDS2-3VA 0.5um Resolution DRO 3 Axis Digital Readout Meter RS422 Signal For lathe mill

Brand Name:	SINO
Model Number:	SDS2-3VA
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS2-3VA 0.5um Resolution DRO 3 Axis Digital Readout Meter RS422 Signal For Lathe Mill

Number Of Axis:

Digital Readout System

Color:

Grey/black

Signal:

TTL/RS422

Voltage:

AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Grinding Machine, Lathe

Resolution:

1um,5um,0.5um, 1.5um

Material:

Metal/plastic

Supply Ability:

1000 pcs per month

Highlight:

3 Axis Digital Readout Meter

SINO SDS2-3VA

0.5um Resolution DRO

Product Description

SINO SDS2-3VA 0.5um Resolution DRO 3 Axis Digital Readout Meter RS422 Signal For Lathe Mill

These functions enhance the ease of use for graphical operations. The DRO supports input frequencies up to 5MHz with A/B signals, making it one of the most advanced systems globally. Notably, it is the first manufacturer in China to employ 16-bit and 32-bit processors in a DRO system.

SDS2-3VA DRO Digital Readout DRO Functions:

PCD Circumferential Division: Suitable for spark testers and milling machines.
Involute Chamber Machining: Applicable to milling machines for precision work.
Bevel Machining and Angular Surface Processing**: Specifically designed for milling machines.
N3 Function: Exclusive to milling machines.
Diagonal Boring: Designed for use with milling machines.
R-Arc Function: Specific to milling machines for arc machining.

Taper Measurement Function: Exclusively for lathe operations.
200-Tool Collection: Applicable to lathes, allowing extensive tool storage and management.

Dithering Prevention Function: Designed for grinding machines to ensure smooth operation.

Specifications of SINO SDS2-3VA digital readout system + Glass linear scale

The SDS2-3VA is a high-performance universal display console suitable for milling, turning, and grinding applications.

This three-axis system supports the connection of up to three linear encoders. Additional connectors are available to combine axes or adapt inputs to equipment from different manufacturers. Please refer to the encoder compatibility guide below for more details.

Key features include a sturdy die-cast housing and a front panel with tactile switches, along with a large, easy-to-read LCD display.

The system offers advanced functionalities such as PCD (Pitch Circle Diameter), line of holes, 200 zero memory points, radius/diameter display, and tool offsets.

Packaging List :

1 PC	3 Axis LED digital readout SDS2-3Va
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

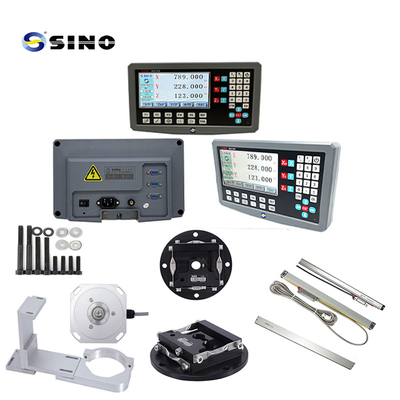

SINO SDS2-3VA 0.5um Resolution DRO 3 Axis Digital Readout Meter RS422 Signal For lathe mill 0

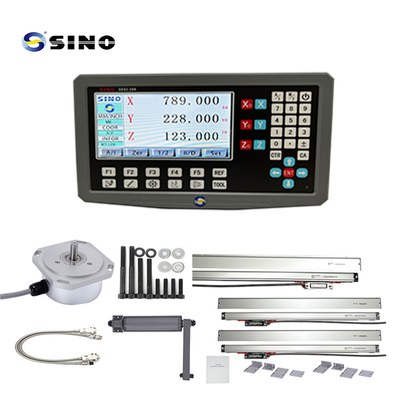

SINO SDS2-3VA 0.5um Resolution DRO 3 Axis Digital Readout Meter RS422 Signal For lathe mill 1

The rack in the picture is optioned, not standard product.

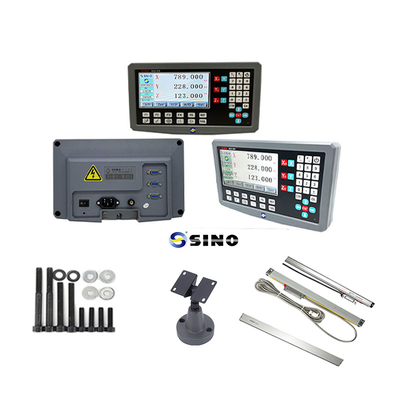

SINO SDS2-3VA 0.5um Resolution DRO 3 Axis Digital Readout Meter RS422 Signal For lathe mill 2
