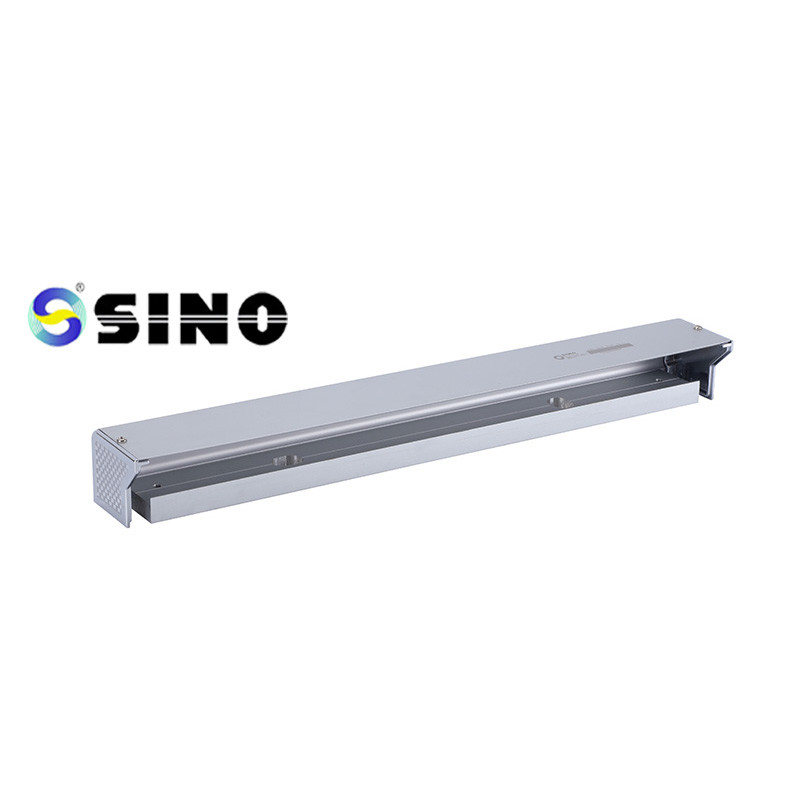

ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines

ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines
ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines

Large Image :  ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS,ISO9001
Model Number: KA800M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines

Description
Item Name: SINO Linear Magnetic Encoder, Absolute Usage: Hefty Boring Machine Lathes
Type: Magnetic Encoder Of The Closed Type Scale Model: KA-800M Magnetic
Output Signal: TTL Resolution: 1µm
Cable Length: 3 Meter Or Others Max Measurement Length: 1000mm
Protection Head: IP 67 Displacement Sensor: 73/23/EEC Directive
High Light:

30m/Min Magnetic Linear Encoder

,

ISO9001 Magnetic Linear Encoder

,

Boring Machines Magnetic Linear Encoder

SINO KA800 Absolute Magnetic Linear Encoder Economic Heavy Machine





Advantage of Closed Magnetic Encoder Scale



Exact 1 mm pitch, extended measuring range, contact-free measurement, no backlash issues, easy installation





Technical parameter



Magnetic Encoders
Reference signal Each 5mm(C)
Pitch 1mm
Ruler tape specifications 5+5mm
Resolution 1um
Operating voltage 5V+±5%
Cable 5 core or 8 core
Output form TTL or RS-422
Max. Moving speed 30m/min
Operating temperature -20~70℃
High precision of up ± 10µm / 300mm or ± 20µm / 1000mm
Measurement length 3–100m
Humidity 100% Non-condensing
Standard reading head provides cable 3m





Encoder Magnetic Scale Application



The following types of facilities are best suited for magnetic scales: large lathes, metalworking facilities, machines for processing stone, and woodworking equipment.



Encoder Magnetic Mcale Application



Large lathes, grinding machines, milling machines, drilling machines, and electrical discharge machines (EDMs)

PVC cutting machines, wood cutting machines, glassworking machines, machining centers, and material handling

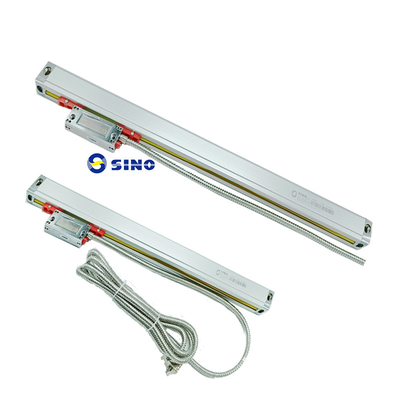

Detail image:



ISO9001 Absolute Magnetic Linear Encoder 30m/Min For Boring Machines 0





Why choose us?



You can cut the magnetic scale to fit your needs.
Completely sealed read-head that matches IP67 protection class thanks to flawless profile structure
sophisticated technical and internal architecture
The need for an automatic gain control technician was lessened.The distance between the tape and reader can be 3mm (5 micron)





Questions & Answer :



1. What is the maximum measurement length?
 Up to 100,000mm of measurement length
2. What does the range of lengths from 120 to 100,000 mm mean?
The meaning of all these lengths is the machine's x, y, and z axis table travel length (also known as table traveling size; NOT table size). For the overall length, you might need to add an extra 5.5 inches.
3. How do I go about getting a complete set of two Axis dro with scales for my lathe machine?
One can choose between "1pc 2 Axis dro," "Travel length **mm of linear encoder or magnetic encoder," and "Travel length ***mm." Once selected, the desired item will be delivered.
4. My machine's y axis moves 530 mm, while its x axis moves 260 mm. What can you provide this kind length that not listed in the options ?

Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 270mm scale and 570mm scale for your machine .

5, If i only buy 1 piece scale separately , can i get the user manual ?

Answer : The user manual comes with DRO , But you can contact the seller to get download .

6, What should I choose for my lathe or mill ?

Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis

7, Can I cut the scale if it's too long for my machine ?

Answer : Technicality NO. if you are novice , otherwise , the scale may probably be damaged and cannot be used

8, Are they all ship by Fed Ex, UPS, DHL ?

Answer : Yes. Standard FedEx support and others are available
