Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit

Brand Name:	SINO
Model Number:	SDS6-2V, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE, RoHS

Item Name:

Metal LED Grinding Machine With Two Axes And Digital Readout Kit

Usage:

Positioning Of Grinding Machines

System:

SDS6-2V LED Digital Readout

Scale Model:

KA-300, SDS6-2V

Signal:

TTL / RS422

Resolution:

0.001mm / 1µm

Voltage:

AC 100V-240V

Meas. Travel:

70-1020mm

Supply Ability:

3000 sets per month

Highlight:

2 Axis Digital Readout DRO Kit

Lathe Machine 2 Axis Digital Readout

0.001mm LED 2 Axis Digital Readout

Product Description

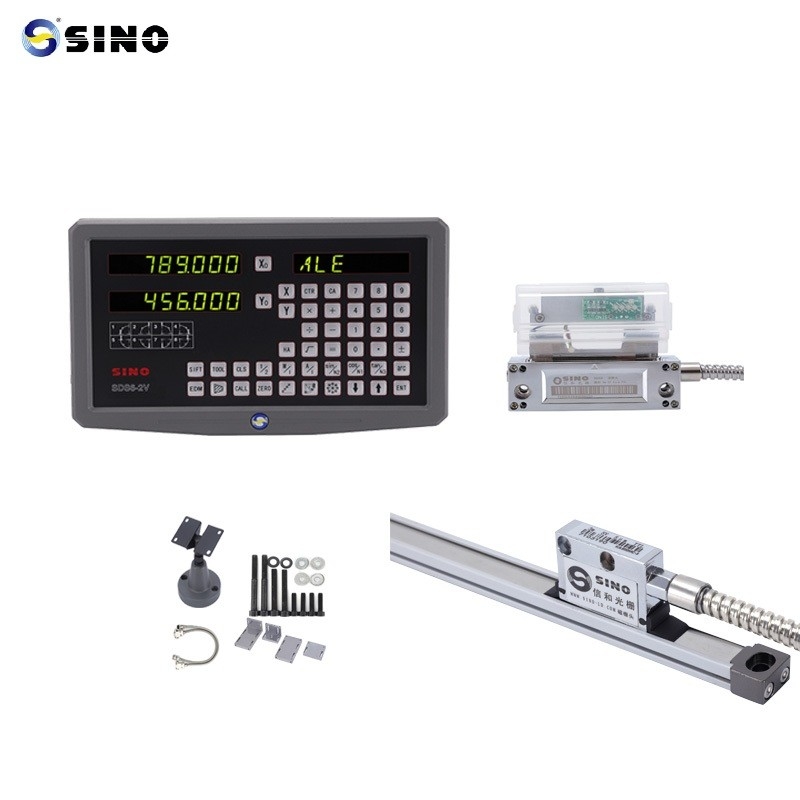

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit

The package is unique for the needs of a two-axis grinding machine.
DRO SDS6-2V, a single metal 2-axis display, has two KA-300 high precision linear scales measuring 1µm.
For a grinding machine, the resolution should typically be 1µm.
Additionally, the 1µm scales have yellow lips that improve accuracy by moving more smoothly.

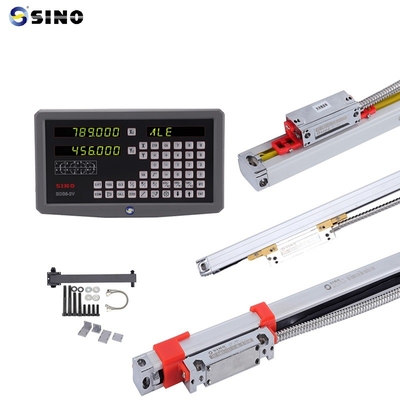

Package list:

Item name	Metal Grinding Machine DRO kit
Digital Readout (DRO)	SDS6-2V
Linear scale for axis X	KA-300: 70-1020mm
Linear scale for axis Y	KA-300: 70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type D
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual
Bracket for Grinding	1 set (optioned, not standard)

Bracket for Grinding:

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit 0

Special for the cylinder type grinding header, so that's not standard accessory.

Detail Information:

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit 1

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit 2

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit 3

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit 4

Pin Description:

Lathe Machine 0.001mm LED 2 Axis Digital Readout DRO Kit 5

All linear scales were tested before delivery. Here is a sample of a scale's test report.
