The DRO set is designed specifically for two-axis milling applications.

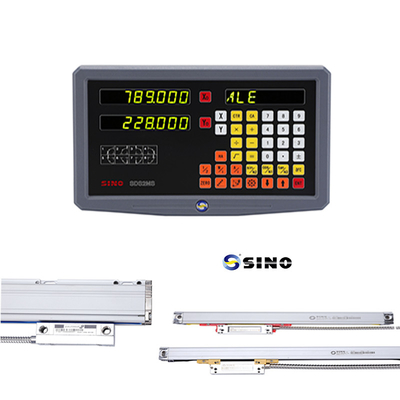

One 2-axis LED display DRO SDS2MS is equipped with two standard grating scales KA-300.

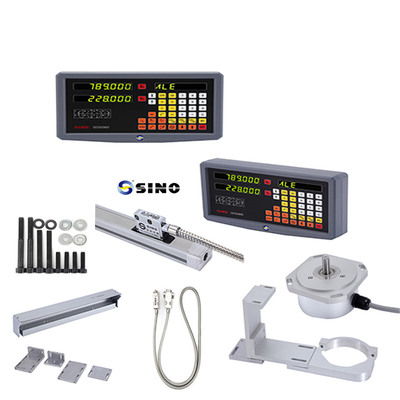

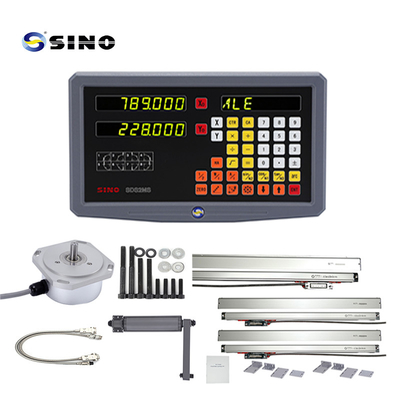

Package list:

Item name	2 axes economy LED milling machine DRO set
Digital Readout (DRO)	SDS2MS
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

1.Midsplit: Splitting a component along its centerline, often for assembly or machining purposes.

2.Smooth "R": Creating a smoothly curved edge or radius, enhancing the part's finish and functionality.

3.Simple "R": Incorporating a straightforward curved edge or radius, ensuring simplicity in design and manufacturing.

4.Oblique Line Hole Positioning: Placing holes or bores at non-perpendicular angles, meeting specific structural or functional requirements.

5.PCD Circle Equally Dividing: Dividing a Pitch Circle Diameter (PCD) into equal segments, ensuring precise positioning of features such as holes or mounting points.

6.Bevel Processing: Machining edges to form bevels, facilitating part assembly or enhancing visual appeal.

7.Rectangular Inner Chamber Progressive Machining: Methodically machining a rectangular internal chamber in stages, achieving precise dimensions and features gradually.

Detail Information:
