SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder

Large Image : SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	SDS2-3VA, KA-300, KA-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder

Description

Item Name:	SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder	Usage:	Lathe/grinding/boring Machine And EMD
System:	3 Axis DRO SDS2-3VA	Scale Model:	KA-300 Or KA-500 Series
Signal:	TTL / RS422	Resolution:	0.005mm (5µm)、0.01mm、0.05mm
DRO Mounting:	Electric Box By A Lathe Rack	Meas. Travel:	770~1020mm
Display:	Colorful TFT LCD Screen	Voltage:	100~240V / 5V
Highlight:	SINO SDS2-3VA 2 Axis DRO , Lathe Machine DRO Digital Readout , Linear Encoder DRO Digital Readout

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder

The DRO device is designed specifically for two-axis lathe machines.

The TFT DRO SDS2-3VA should be mounted on the lathe's electrical box using a lathe rack.

The KA-300 linear encoder should be used for axis Z, and the KA-500 for axis X.

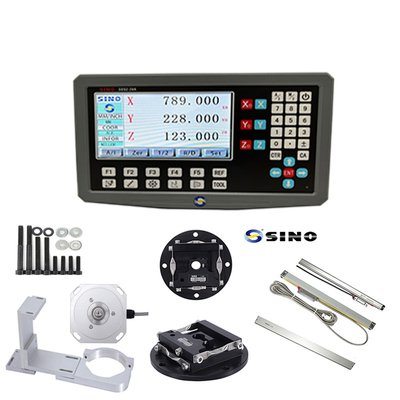

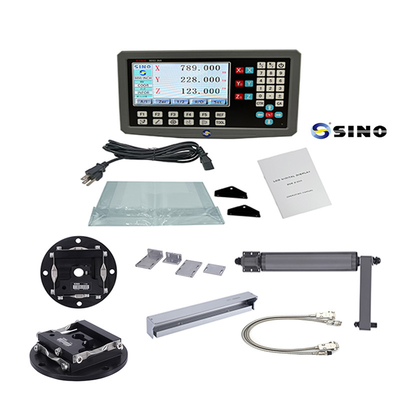

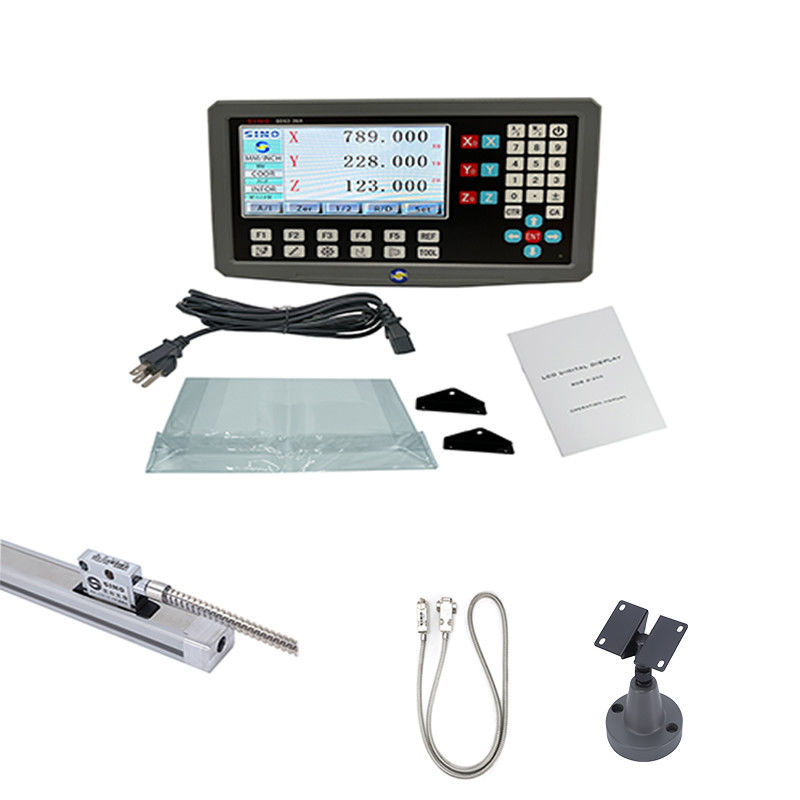

Package list:

Item name	2 axis TFT lathe machine DRO unit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Convert Radius to Diameter
Compensate for tool diameter
Taper Measurement
200 Tools Storeroom

Detail Information:

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder 0

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder 1

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder 3

Pin Description:

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder 5

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

SINO SDS2-3VA 2 Axis RS422 For Lathe Machine DRO Digital Readout Signal With Linear Encoder 8
