SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

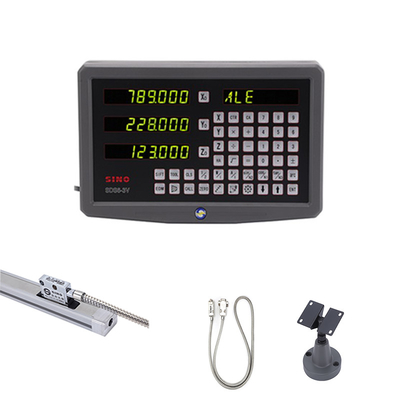

Large Image : SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	SDS6-3VF, KA-300, KA-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

Description

Item Name:	SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional	Usage:	Milling Machine And Lathe Machine
System:	LED DRO SDS6-3VF For Milling Head	Scale Model:	KA-300, KA-500
Signal:	TTL / EIA-422-A	Resolution:	0.005mm/0.001mm
Voltage:	AC 100V-240V	Meas. Travel:	70-1020mm
Highlight:	Metal LED Digital Readout , Milling Machine Digital Readout , 3 Axes Digital Readout

SINO 3 axis metal milling machine DRO kit SDS6-3VF, RS232 output for aixs Z milling head linear encoder

The DRO SDS6-3VF includes an RS232-C interface for connecting the PC or other systems.

The package is designed specifically for 3 axis milling machines, with the axis Z being used for milling head positioning.

DRO SDS6-3VF has a 3-axis display with RS232-C output, two conventional linear encoders KA-300, and one tiny encoder KA-500.

Package list:

Item name	RS232-C output DRO milling head kit
Digital Readout (DRO)	SDS6-3VF
Linear scale for axis X	KA-300: 670-1020mm
Linear scale for axis Y	KA-300: 370-570mm
Linear scale for axis Z	KA-500: 170mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Accessory for Z Milling head	KA-500 milling head accessory (1 set)
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Smooth “R”
Simple “R”
Positioning the oblique line hole
PCD Circle Equal division
Bevel processing
Rectangular Inner Chamber Progressive Machining

Detail Information:

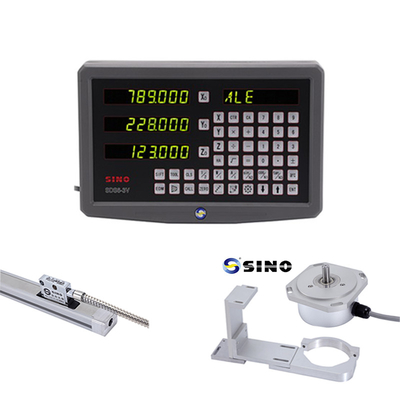

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional 0

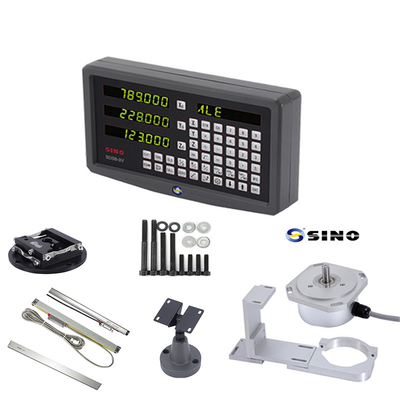

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional 1

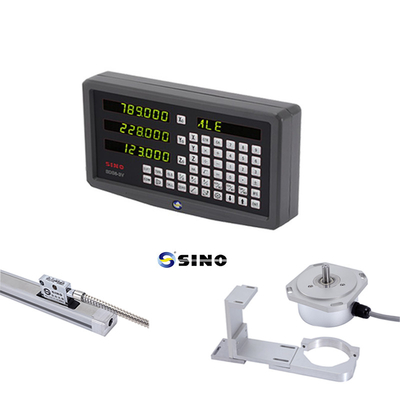

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional 2

Pin Description:

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional 4
