SINO SDS2MS 2 Axis Digital Readout With LED Screen For Lathe , Multifunctional DRO Measuring Systems

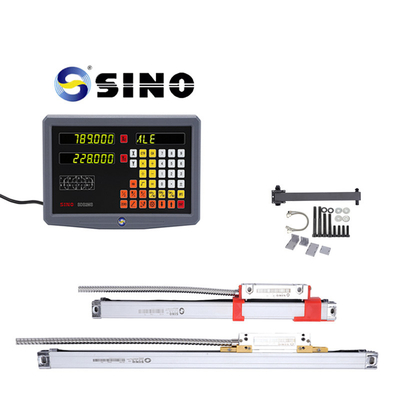

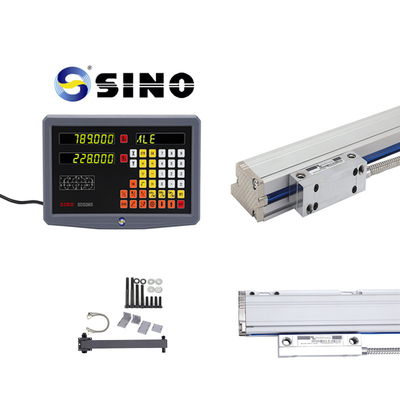

SINO 2 axes economical lathe digital readout system SDS2MS, mounted on an electric box with two linear grating scales

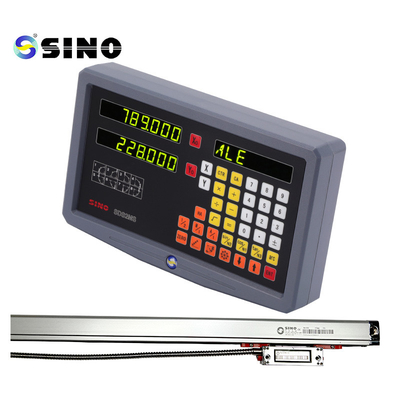

This set of digital readouts is designed specifically for two-axis lathe machine orientation.

The DRO SDS2MS should be mounted on the lathe's electrical box using a 90-degree rack.

The KA-300 linear grating scale should be for axis Z, while the KA-500 linear grating scale should be for axis X.

Package list:

Functions for lathe machine:

1. Convert Radius to Diameter
2. Compensate for tool diameter.

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:
