SINO SDS2-3VA 3 Axis DRO Digital Readout Meter With Linear Scale Encoder For Lathe And Mills

SINO SDS2-3VA 3 Axis Digital Readout Meter KA300 Glass Linear Ruler TTL/RS422 Signal​

Key Features:

1️⃣ 3-Axis Capability: The SDS2-3VA DRO meter can simultaneously monitor and control three axes, making it ideal for machines such as milling machines, lathes, and grinders that require multi-axis precision.

2️⃣ KA300 Glass Linear Ruler: This digital readout meter is compatible with the KA300 glass linear ruler, known for its precise and reliable measurements, ensuring accurate positioning and machining.

3️⃣ TTL/RS422 Signal: Supporting TTL/RS422 signals, the SDS2-3VA ensures robust communication between the digital readout meter and the linear ruler, facilitating accurate data transmission.

4️⃣ Digital Display: Featuring a digital display, the meter provides real-time measurements, enabling precise monitoring and control of the machining process.

5️⃣ User-Friendly Interface: With its intuitive interface, the DRO meter offers easy setup, customization, and operation, enhancing usability for operators.

These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential Division (Spark Testers and Milling Machines):This function allows precise division of the circumference into equal parts, commonly used in spark testers and milling machines for accurate positioning and repetitive machining tasks.
Function for Machining Involute Chambers (Milling Machines):Designed specifically for milling machines, this function facilitates the machining of involute profiles, essential for creating gears and other specialized components with involute shapes.
Bevel Machining and Angular Surface Processing (Milling Machine-Specific):This feature enables milling machines to perform bevel machining and process angular surfaces with precision, ensuring accurate angular cuts and surface finishes.
N3 Function (Milling Machine-Specific):The N3 function on milling machines provides advanced capabilities such as complex interpolation and additional axes control, enhancing the machine's versatility for intricate milling operations.
Diagonal Boring (Milling Machine):This function allows milling machines to perform diagonal boring operations, enabling efficient boring at angles other than perpendicular or parallel to the workpiece surface.
R-Arc Function (Milling Machine-Specific):The R-Arc function on milling machines facilitates the machining of arcs with a specified radius, offering precise control over curved surfaces and profiles.
Function for Measuring Taper (Lathe Only):Specifically designed for lathes, this function accurately measures and monitors taper angles during turning operations, ensuring precise dimensional control.
200-Tool Collection (Lathe Applicable):This function on lathes enables the management and selection of up to 200 different tools, optimizing tooling efficiency and workflow in machining operations.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions:The SDS2-3VA digital readout system includes preset functions designed for storing and quickly recalling specific measurement values. This capability streamlines repetitive machining tasks by allowing operators to easily retrieve and apply precise settings, enhancing efficiency and consistency in production.

Error Compensation:This feature enables the SDS2-3VA system to compensate for potential inaccuracies in machine tools or measurement deviations. By calibrating the system and applying correction values, it enhances the overall accuracy of measurements, ensuring that machining operations maintain tight tolerances and high-quality standards.

Data Interface:Certain models of the SDS2-3VA digital readout system are equipped with data interfaces such as RS-232 or USB. These interfaces facilitate seamless data transfer and communication between the digital readout unit and external devices such as computers or data logging systems. This connectivity enables real-time monitoring, data recording, and analysis, supporting quality control efforts and process optimization in manufacturing environments.

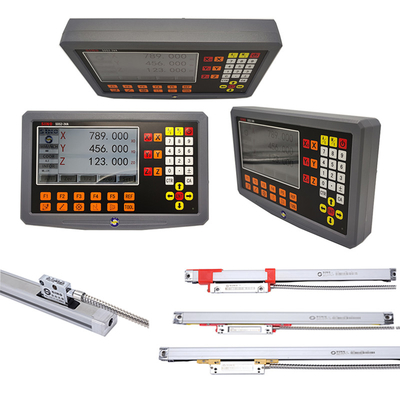

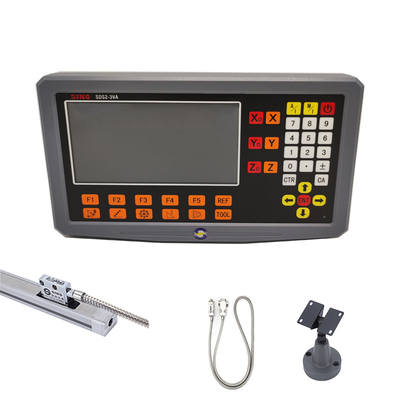

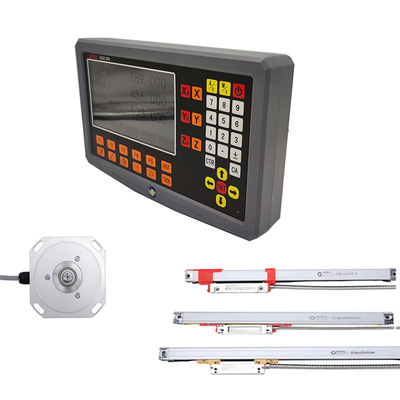

Product image /photos:

The rack in the picture is optioned, not standard product.
