SINO Digital Readout SDS 2MS 2-Axis Magnetic Scale Dro With Linear Encoder Kit For Milling Machines

SINO Digital ReadoutSDS 2MS 2-Axis Magnetic Scale Dro With Linear Encoder Kit For Milling Machines​

The Sino SDS2MS DRO is a sophisticated digital display gauge specifically tailored for lathe and milling machines. It boasts a versatile array of functions that can be effortlessly customized to accommodate various types of machine tools.

Key Features:

1. Versatile Functionality: The SDS2MS DRO offers extensive functionality including radius/diameter conversion, MM/Inch conversion, and absolute/relative conversion. These features provide flexibility in measurements and calculations.
2. Enhanced Precision: Featuring a mid-splitting function, the DRO facilitates precise positioning and measurement of workpieces. The "R" function simplifies radius calculations, while ensuring smooth operation ("smooth R") during machining processes.
3. Convenient Memory Storage: Equipped with a built-in memory, the DRO can store up to 200 groups of zero positions. This capability allows for easy retrieval of previous settings, enhancing workflow efficiency.

Specifications:

Voltage Range: AC 85V~250V / 50Hz~60Hz
Power Consumption: 15W (25VA)
Coordinate Options: Single coordinate, two coordinates, three coordinates
Display Type: Seven-segment display with eight meters words show symbols (for two or three axis)
Net Weight: 1.3kg (2.9lb)
Input Signal Compatibility: TTL, EIA-422 open collector output signal, compatible with programmable controllers
Input Signal Frequency Support: >100 KHz
Resolution Options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns

Additional Features:

Voltage Range: AC 85V~250V / 50Hz~60Hz
Power Consumption: 15W (25VA)
Coordinate Options: Single coordinate, two coordinates, three coordinates
Display Type: Seven-segment display with eight meters words show symbols (for two or three axis)
Net Weight: 1.3kg (2.9lb)
Input Signal Compatibility: Supports TTL, EIA-422 open collector output signal, and is compatible with programmable controllers
Input Signal Frequency Support: Greater than 100 KHz
Resolution Options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns

Upgraded Functions:

1. Radius/Diameter Conversion: The DRO supports radius/diameter conversion, allowing users to switch between these measurements easily depending on their machining needs.
2. MM/Inch Conversion: It includes MM/Inch conversion capabilities, enabling users to work with either metric or imperial units as required.
3. Absolute/Relative Conversion: The DRO supports absolute and relative measurement modes, providing flexibility in how measurements are taken and displayed relative to a reference point.
4. Mid-Splitting Function: This function facilitates precise positioning by dividing the distance between two points into equal halves, aiding in accurate machining operations.
5. Easy "R" Function: The DRO features an "R" function that simplifies radius calculations, making it easier to set up and perform tasks that require radius measurements.
6. Smooth "R" Function: This function ensures smooth operation when using radius measurements, enhancing accuracy and ease of use in machining processes.
7. PCD Hole Positioning on Circumference: It supports PCD (Pitch Circle Diameter) hole positioning on a circumference, a critical feature for tasks involving rotational symmetry and hole pattern placement.
8. 200 Groups Zero Position Memory: With a memory capacity for storing up to 200 groups of zero positions, the DRO allows users to save and recall specific settings quickly, improving efficiency and repeatability.

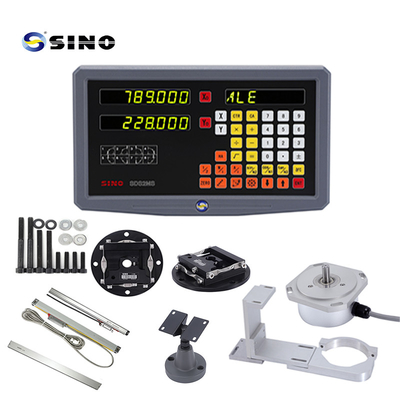

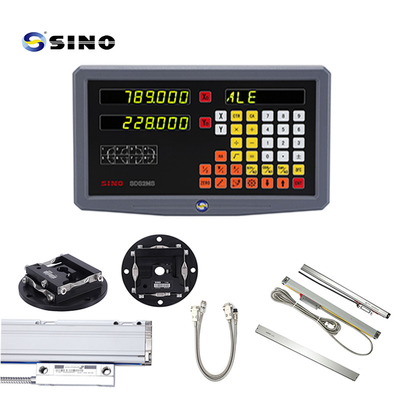

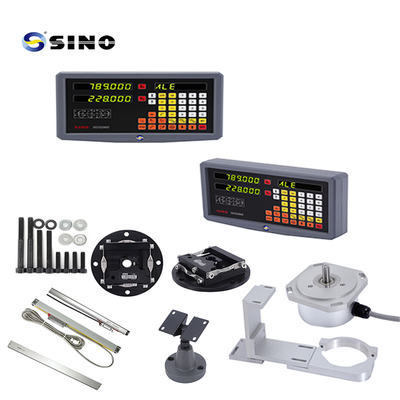

Product image /photos:

The rack in the picture is optioned, not standard product.
