SINO 2 Axis CE SDS6-2V SINO Digital Readout System With LED Display For Lathe Milling Machine

SINO 2 Axis CE SDS6-2V SINO Digital Readout System With LED Display

SDS6 series is highly acclaimed and extensively utilized across industries in precision applications such as coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines. It supports high-frequency A/B signal inputs up to 5MHz and incorporates cutting-edge 16-bit SCM technology. This advanced technology allows it to meet diverse operational needs effectively. The SDS6 series delivers faster measurement speeds and a smoother control system, ensuring enhanced precision. Each axis offers 40 points of non-linear compensation, significantly boosting measurement accuracy.

Basice information:

Input Voltage Range: The SDS2-3VA operates with an input voltage range of AC 100 to 240V at frequencies of 50 to 60Hz, accommodating different plug configurations.

Power Consumption: It consumes 15VA of power, ensuring efficient operation while minimizing energy usage.

Operating Temperature: Designed to operate reliably across various environments, the SDS2-3VA functions within a temperature range of 0 to 45 degrees Celsius.

Storage Temperature: For storage and transportation, the SDS2-3VA can withstand temperatures ranging from -30 to 70 degrees Celsius, ensuring durability.

Readout Allowable Input Signal: Accepts TTL/RS422 square wave input signals, providing flexibility and compatibility with various machine configurations.

Allowable Input Signal Frequency: Supports input signal frequencies of less than 5MHz, making it suitable for high-frequency applications.

Maximum Resolution of Digital Display Length: Offers a maximum digital display length resolution of 5µm (0.005mm or 0.0002 inches), ensuring precise and detailed measurements.

Minimum Resolution of Digital Display Angle: Provides a minimum digital display angle resolution of 0.0001 per pulse, enabling fine adjustments and high accuracy in angular measurements.

Strengthen Functions:

1. Enhanced Calculator Functionality:The SDS2-3VA features adjustable decimal digits, providing options for three, four, or five-digit precision to enhance calculation accuracy across various applications.
2. Non-linear Error Compensation:To achieve superior machining precision, the SDS2-3VA supports up to 40 sections of non-linear error compensation. This capability minimizes deviations and ensures consistent accuracy in complex machining operations.
3. Decimal Digit Selection in Inch Mode:In inch mode, users can select between 4 or 5 decimal digits. Choosing 4 digits accommodates longer scale requirements, while opting for 5 digits enables high-precision displays suitable for intricate measurements.
4. Communication Interface:Equipped with an RS-232-C interface, the SDS2-3VA facilitates seamless communication with external devices. This interface enables data transfer and integration with compatible systems, enhancing operational flexibility and connectivity.

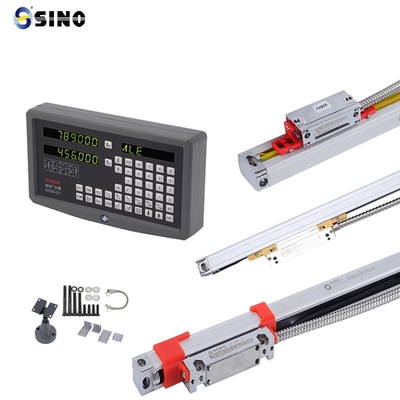

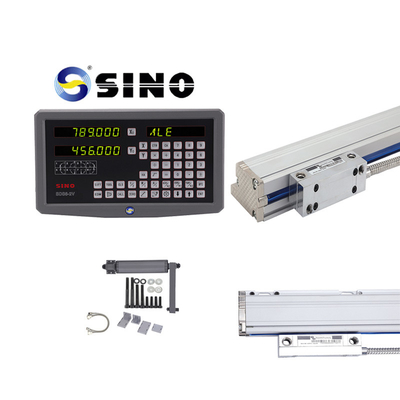

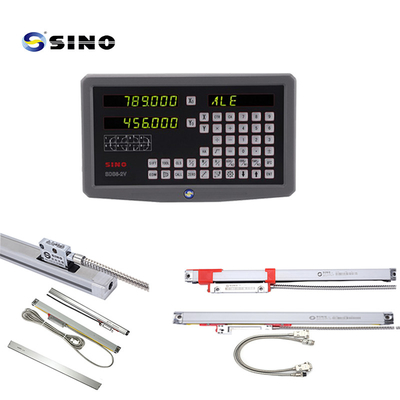

Product image /photos:

The rack in the picture is optioned, not standard product.
