This package is designed specifically to meet the requirements of a 3-axis milling machine, with particular emphasis on accommodating the installation of the milling head on the Z-axis.

Package list:

Item name	milling machine DRO milling head kit
Digital Readout (DRO)	SDS6-3V
Linear scale for axis X	KA-300: 670-1020mm
Linear scale for axis Y	KA-300: 370-570mm
Linear scale for axis Z	KA-500: 170mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Accessory for Z Milling head	KA-500 milling head accessory (1 set)
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Refers to a machining operation that involves splitting a part or feature midway along its length or width.
Smooth “R”: Indicates the machining of a smooth radius or curved surface, typically denoted as "R" in technical drawings.
Simple “R”: Similar to "Smooth ‘R’", it denotes machining a basic radius or curved feature on a part.
Oblique Line Hole Positioning: Involves drilling or positioning holes at angles other than 90 degrees to the workpiece surface.
PCD Circle Equally Dividing: Refers to dividing a circular pattern or feature into equal parts (e.g., dividing a circle into 8 equal segments).
Bevel Processing: Involves machining or cutting edges at an angle other than 90 degrees, often used for creating chamfers or bevels.
Rectangular Inner Chamber Progressive Machining: Indicates the progressive machining of a rectangular-shaped internal chamber or feature within a workpiece.

Detail Information:

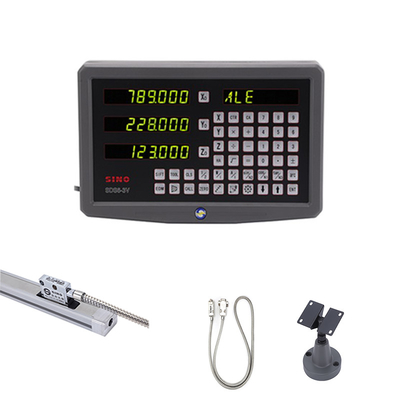

SINO SDS6-3V Digital Readout With LED Display For Milling Machine DRO Kit Multi Function 0

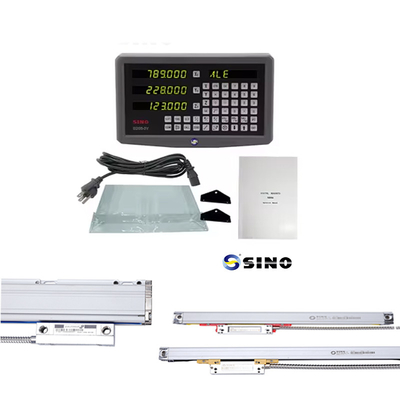

SINO SDS6-3V Digital Readout With LED Display For Milling Machine DRO Kit Multi Function 1

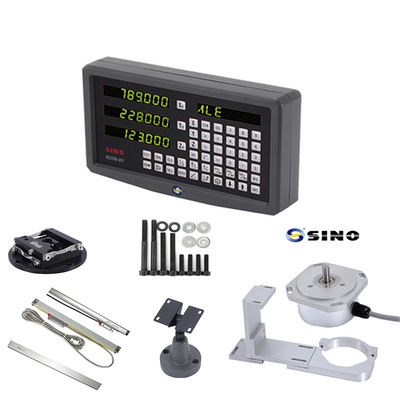

SINO SDS6-3V Digital Readout With LED Display For Milling Machine DRO Kit Multi Function 2
