SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine

Brand Name: SINO
Model Number: SDS6-3V, KA-300
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
SINO SDS6-3V Digital Readout With Ka300 Linear Encoder
Usage:
3 Axes Milling Machine Installation And Positioning
System:
LED Digital Readout SDS6-3V
Scale Model:
KA-300
Signal:
TTL Or EIA-422-A
Resolution:
0.5/1/5 Micron
Voltage:
AC 100V-240V, 50-60Hz
Meas. Travel:
70-1020mm
Supply Ability:
3000 sets per month
Highlight:

Lathe Machine Digital Readout

,

Metal Digital Readout

,

2 Axis Digital Readout

Product Description

SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine​



The SDS6-3V LED digital readout package is specifically designed for installing and positioning 3-axis milling machines. It includes one SDS6-3V LED digital readout unit and three KA-300 standard linear encoders, ensuring precise measurement and control during milling operations.

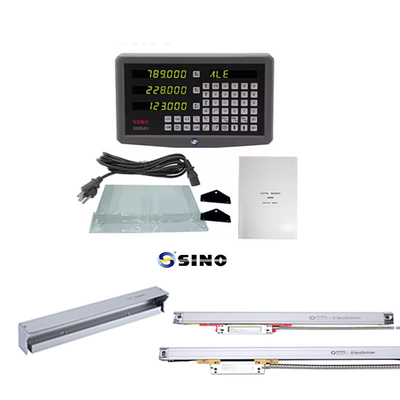

Package list:



Item name 3 axes metal LED milling machine digital readout package
Digital Readout (DRO) SDS6-3V
Linear scale for axis X 670-1020mm
Linear scale for axis Y 370-570mm
Linear scale for axis Z 370-570mm
Rack for DRO L400
Protection cover for X scale Type C
Protection cover for Y scale Type D
Protection cover for Z scale Type D
Bracket for scales T-bracket (2 sets)
Others Cable / Screws / Manual



Functions for milling machine:



  1. Midsplit: Division of a workpiece or operation into equal halves.
  2. Smooth “R”: Achieving smooth radii or curved edges.
  3. Simple “R”: Creating basic radii or curves.
  4. Oblique Line Hole Positioning: Aligning holes at non-right angles.
  5. PCD Circle Equally Dividing: Dividing a circle into equal parts for PCD (Pitch Circle Diameter).
  6. Bevel Processing: Machining edges to create bevels or chamfers.
  7. Rectangular Inner Chamber Progressive Machining: Gradual machining of internal rectangular chambers or features.



Detail Information:

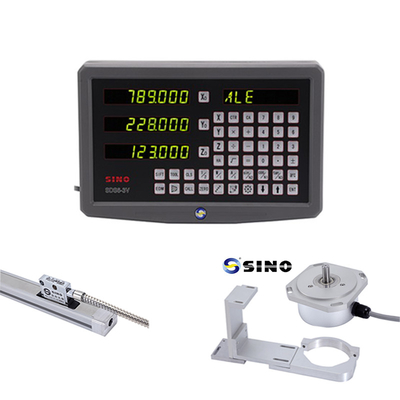

SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine 0

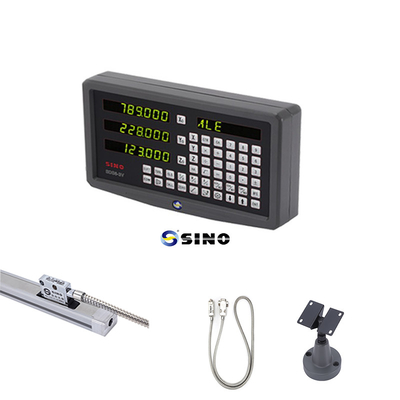

SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine 1

SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine 2



Pin Description:

SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine 3



All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS6-3V Digital Readout With Ka300 Linear Encoder Metal Digital Readout 2 Axis For Lathe Machine 4
