Item name	2 axes economy LED milling machine DRO set
Digital Readout (DRO)	SDS2MS
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Dividing a workpiece or a feature into two equal halves along its axis.
Smooth “R”: Achieving a smoothly curved radius or edge, typically for aesthetic or functional purposes.
Simple “R”: Creating a basic curved radius or edge without intricate details.
Oblique Line Hole Positioning: Placing holes at angles other than 90 degrees relative to the workpiece surface.
PCD Circle Equally Dividing: Dividing a circular pattern or feature into equal segments based on the Pitch Circle Diameter (PCD).
Bevel Processing: Machining or cutting edges to create bevels or chamfers, often used for enhancing part functionality or appearance.
Rectangular Inner Chamber Progressive Machining: Gradually machining internal rectangular chambers or features within a workpiece, typically in stages or steps to achieve desired dimensions or finishes.

Detail Information:

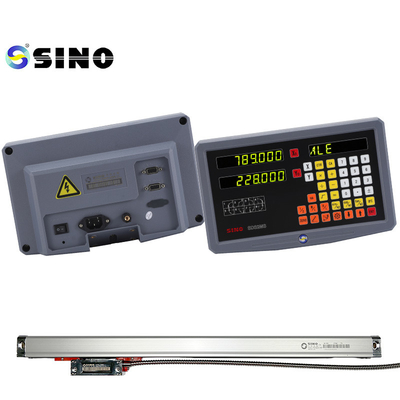

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine 0

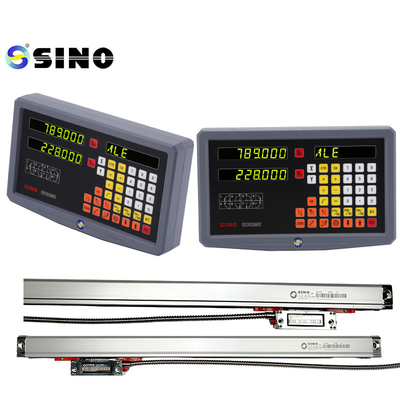

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine 2

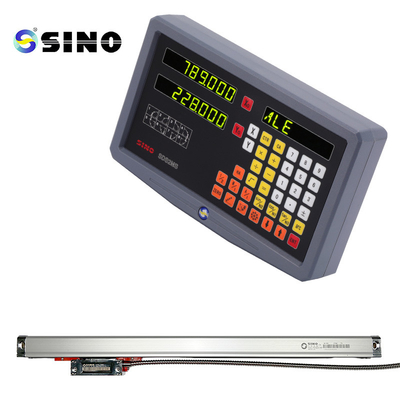

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine 3

Pin Description:

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine 5
