2 Axis SDS2MS SINO Lathe Digital Readout System AC 100-240V Multifunctional With Linear Scale For Lathe Mill

2 Axis SDS2MS SINO Lathe Digital Readout System AC 100-240V Multifunctional with linear scale for lathe mill​

The LED DRO SDS2MS is an economy version of the SDS6 series digital readout. It utilizes the latest 16-bit SCM technology and handles high-frequency A/B signals up to 5MHz. Suitable for most 2-axis display needs, it supports high-precision machines like coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines. Its plastic case reduces weight, helping to lower transportation costs.

Upgraded Functions:

1. Calculator Function:The SDS2 series allows you to adjust the number of decimal digits to three, four, or five, enhancing calculation precision.
2.  Non-linear Error Compensation:The system supports up to 40 sections of non-linear error compensation, improving positioning accuracy.
3.  Decimal Digits in Inch Mode:In inch mode, you can select either 4 or 5 decimal digits. Four digits are suitable for long scale requirements, while five digits offer higher precision for detailed displays.

Specifications :

Supply Voltage: AC 80V-260V, 50-60Hz, US plug available
Power Consumption: 15VA
Operating Temperature: 0-45°C
Storage Temperature: -30-70°C
Input Signal: TTL/RS422 square wave
Signal Frequency: <5 MHz
Max Display Resolution: 0.5 µm
Min Angle Resolution: 0.0001/pulse

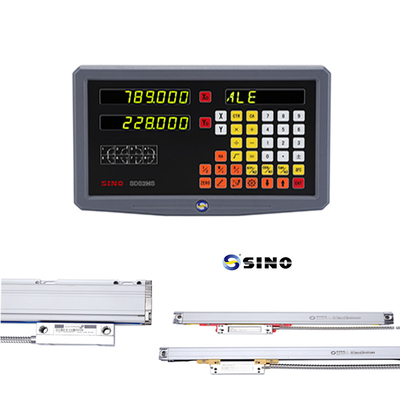

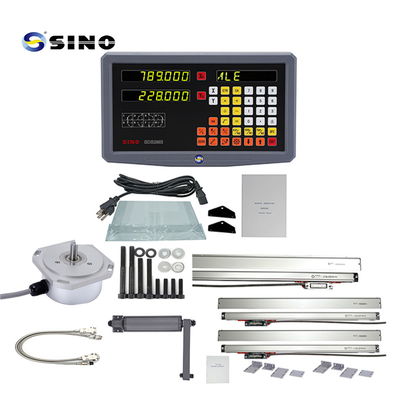

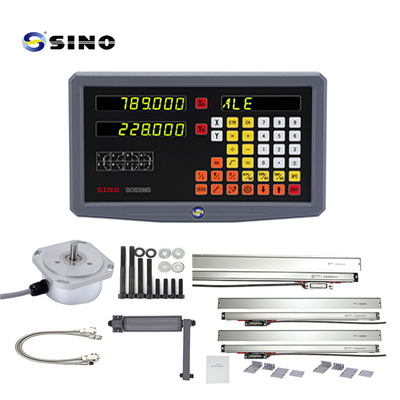

Product image /photos:

The rack in the picture is optioned, not standard product.
