SINO SDS2MS 2 Axes Digital Readout DRO System Multifunctional With KA300 Linear Scale For Lathe

SINO SDS2MS 2 Axes Digital Readout DRO System Multifunctional With KA300 Linear Scale For Lathe

The LED DRO SDS2MS, an economy version of the SDS6 series, features advanced 16-bit SCM technology and supports high-frequency A/B signals up to 5MHz. It is suitable for various 2-axis displays, including high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines. Its plastic case reduces weight to lower transportation costs.

Upgraded Functions:

SDS2 series calculators can increase precision by changing decimal digits to three, four, or five digits.

The system can compensate for non-linear errors in up to 40 sections, improving positioning precision.

In inch mode, you can select between 4 and 5 decimal digits. Four digits can satisfy the long scale requirement, while five digits can satisfy the high precision display.​

Specifications :

1. Supply voltage range: AC 80V-260V, 50-60Hz, US plug available.
2. Power consumption: 15VA.
3. Operating temperature range: 0–45 degrees Celsius.
4. Storage temperature range: -30 to 70 degrees Celsius.
5. Readout allowed input signal: TTL/RS422 square wave.
6. Allowable input signal frequency: less than 5 MHz.
7. The maximum resolution of the digital display length is 0.5µm.
8. The minimum resolution of the digital display angle is 0.0001 per pulse.

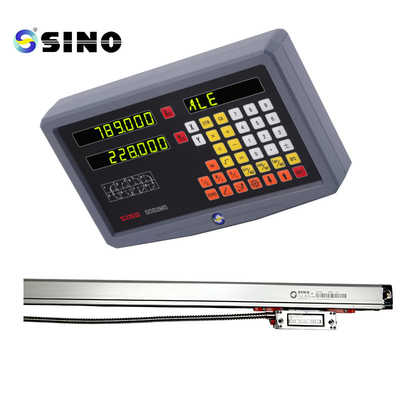

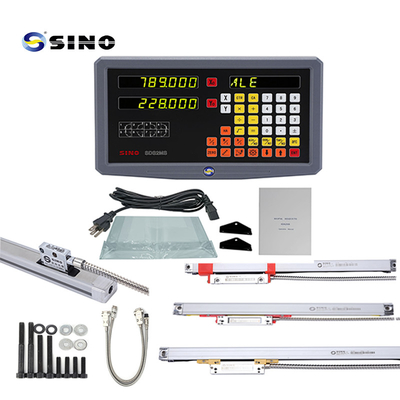

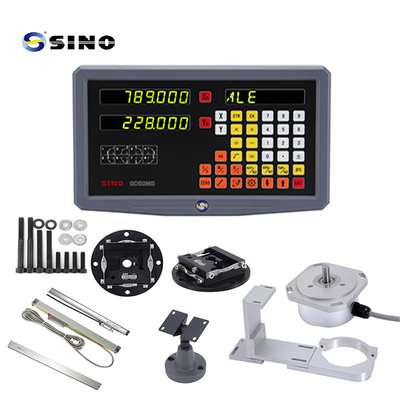

Product image /photos:

The rack in the picture is optioned, not standard product.
