This package is specifically designed to meet the requirements of a 3-axis milling machine, with the Z-axis tailored for the positioning of the milling head.

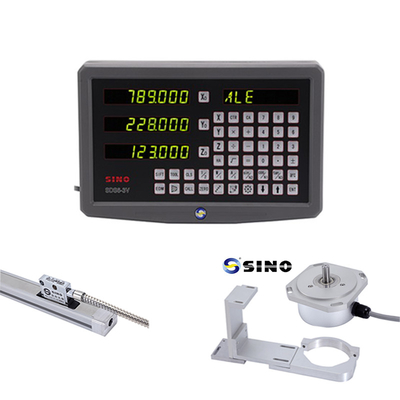

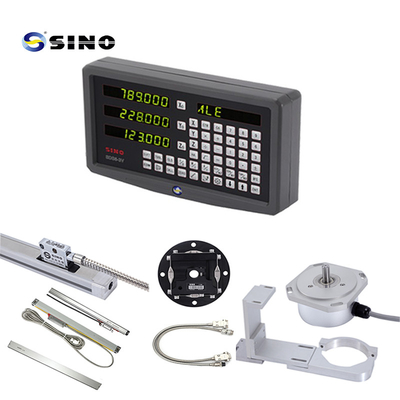

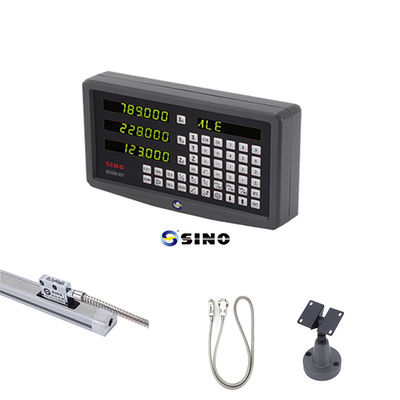

Included is a 3-axis display DRO SDS6-3VF, which comes with two standard linear encoders (KA-300) and one mini encoder (KA-500).

Package list:

Item name	RS232-C output DRO milling head kit
Digital Readout (DRO)	SDS6-3VF
Linear scale for axis X	KA-300: 670-1020mm
Linear scale for axis Y	KA-300: 370-570mm
Linear scale for axis Z	KA-500: 170mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Accessory for Z Milling head	KA-500 milling head accessory (1 set)
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Mid-split
Smooth "R" Curve
Simple "R" Curve
Oblique Line Hole Positioning
PCD Circle Equal Distribution
Bevel Cutting
Progressive Machining of Rectangular Inner Chambers

Detail Information:

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System 0

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System 1

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System 2

Pin Description:

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System 4
