SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines

Brand Name:	SINO
Model Number:	SDS 200, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO 2 Axis SDS 200 Lathe Digital Readout System

Usage:

Grinding Machine And Lathe

System:

SINO 2 Axis SDS 200

Scale Model:

KA-300

Shell:

Aluminum

Display Resolution:

0.5μm, 1μm, 5μm

Voltage:

100V-240V

Keyword:

Dro For Grinding Machine

Warranty:

1 Year

Color:

Black And Grey

Supply Ability:

3000 sets per month

Highlight:

Linear Encoder Ruler Digital Readout System

2 Axis Digital Readout System

Grinding Machines Digital Readout System

Product Description

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines

Metal 2-Axis Digital Readout (DRO): A Reliable Tool for Grinding Machines

The RoHS-compliant Metal TFT 2-Axis Digital Readout (DRO) is a versatile and dependable instrument specifically designed for grinding machines.

Product: RoHS Metal TFT 2-Axis Digital Readout (DRO)
Application: Tailored for use with grinding machines.

Features:

The Metal TFT display of our RoHS-compliant 2-Axis Digital Readout (DRO) provides clear and easy-to-read measurements. It enables precise tracking of both longitudinal and crossfeed movements, specifically tailored for grinding applications. With a user-friendly interface, it offers intuitive operation, while its robust construction is designed to endure the demanding conditions of grinding environments.

Benefits:

The SINO SDS200 RoHS-compliant 2-Axis Digital Readout (DRO) facilitates precise control of grinding processes, significantly improving accuracy, repeatability, and productivity. It offers real-time measurement feedback for immediate adjustments, supporting environmentally-friendly practices.

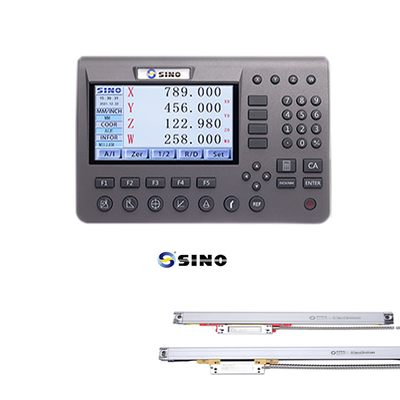

This package is specifically designed to meet the requirements of 2-axis grinding machines. It includes one high-quality 4-axis TFT display DRO SDS200, paired with two high-precision linear scales KA-300 featuring a resolution of 0.001 mm, ideal for precise measurements in grinding applications. The scales are equipped with yellow lips for smoother operation, further enhancing measurement accuracy.

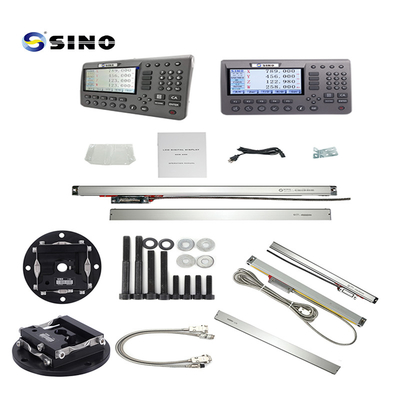

Package list:

Item name	Metal LCD Grinding Machine DRO kit
Digital Readout (DRO)	SDS 200
Linear scale for axis X	KA-300: 70-1020mm
Linear scale for axis Y	KA-300: 70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type D
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual
Bracket for Grinding	1 set (optioned, not standard)

Functions for grinding machine:

Digital Filter Function

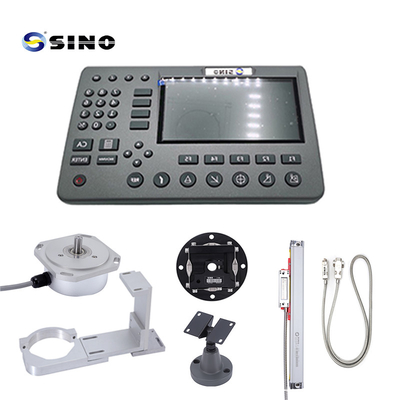

Bracket for Grinding:

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 0

Special for the cylinder type grinding header, so that's not standard accessory.

Detail Information:

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 1

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 2

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 3

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 4

Pin Description:

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 5

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO 2 Axis SDS 200 Lathe Digital Readout System With Linear Encoder Ruler For Grinding Machines 6
