SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale

Brand Name:	SINO
Model Number:	SDS2-3VA, KA-300*3
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO SDS2-3VA Three Axes

Usage:

3 Axes Milling Machine Positioning

System:

DRO SDS2-3VA

Scale Model:

KA-300

Display:

TFT Unit

Resolution:

0.005mm/0.001mm

Voltage:

AC 100V-240V

Meas. Travel:

70-1020mm

Supply Ability:

3000 sets per month

Highlight:

RoHS Optical Encoder Scale

Three Axes Optical Encoder Scale

Milling Machine Optical Encoder Scale

Product Description

SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale

The DRO kit is designed specifically for 3-axis milling machines. It includes one TFT display DRO SDS2-3VA and three standard linear scales KA-300.

Package list:

Item name	3 axes TFT milling machine DRO kit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Linear scale for axis Z	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Protection cover for Z scale	Type D
Bracket for scales	T-bracket (2 sets)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Simple “R”
Oblique Line Hole Positioning
PCD Circle Equal Division
Bevel Machining

Detail Information:

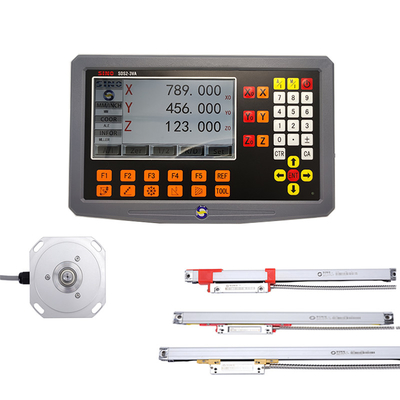

SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale 0

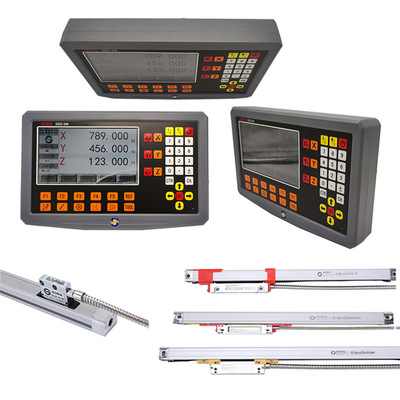

SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale 1

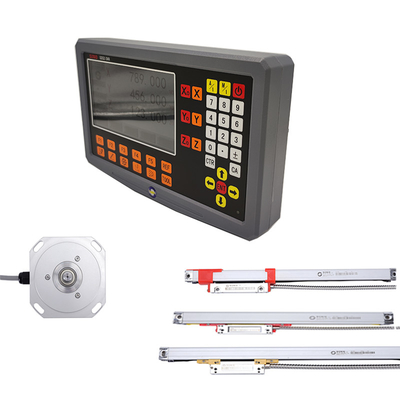

SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale 2

Pin Description:

SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS2-3VA Three Axes For Milling Machine RoHS Absolute Optical With Angle Encoder Scale 4
