SINO SDS2-3VA Digital Readout DRO With Linear Encoder Multilingual Digital Read Out System kit

The SDS2-3VA is an economical TFT DRO and an upgraded model in the SDS2 series. It features the latest 16-bit SCM technology and supports high-frequency A/B signal inputs up to 5MHz, making it compatible with a wide range of machines, including high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines. The lightweight plastic case is designed for more cost-effective transportation. Additionally, the SDS2-3VA comes with a TFT LCD screen to meet diverse user needs and preferences.

Strengthen Functions:

1. Enhanced Calculator Function:The SDS2 series allows you to adjust the decimal digits to three, four, or five digits, thereby enhancing calculation precision.
2. Non-Linear Error Compensation:The system offers up to 40 sections of non-linear error compensation to significantly improve machining accuracy.
3. Decimal Digit Options in Inch Mode:In inch mode, you can select between 4 or 5 decimal digits. Four digits are suitable for long-scale measurements, while five digits provide high precision for detailed displays.

Specifications :

Supply Voltage Range: AC 80V~260V; 50~60Hz, with a US plug available.

Power Consumption: 15VA

Operating Temperature: 0~45°C

Storage Temperature: -30~70°C

Readout Allowable Input Signal: TTL/RS422 square wave

Allowable Input Signal Frequency: Up to 5MHz

Max Resolution of Digital Display Length: 0.5µm

Min Resolution of Digital Display Angle: 0.0001/pulse

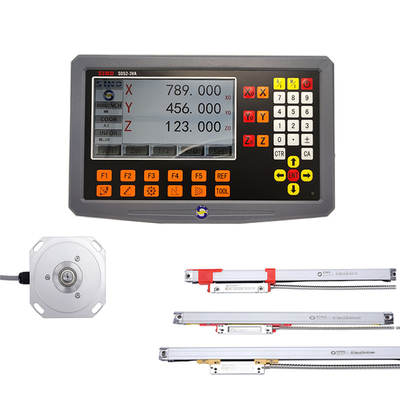

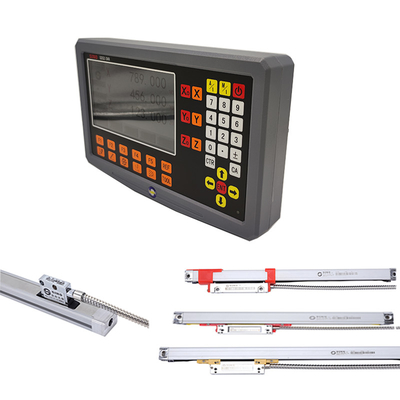

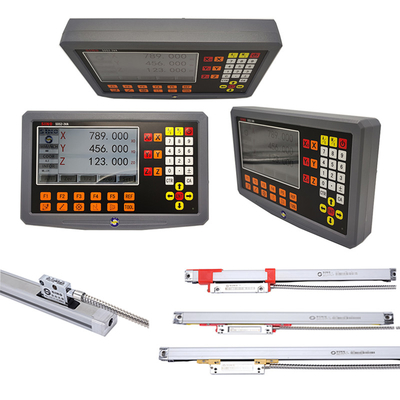

Product image /photos:

The rack in the picture is optioned, not standard product.
