3 Axis Digital Readout SINO SDS6-3VE With LED DRO Digital Readout Kits For EDM Machine

3 Axis Digital Readout SINO SDS6-3VE With LED DRO Digital Readout Kits For EDM Machine

The SDS6-3VE DRO features a dedicated output function for EDM machines, allowing it to connect to the EDM relay for depth control.

The SDS6 series DRO supports high-frequency A/B signals up to 5 MHz and utilizes the latest 16-bit SCM technology. This versatile DRO replaces various basic functions, providing faster measurement speeds and a smoother control system. Each axis offers 40 points of non-linear compensation to reduce errors.

Strengthen Functions:

• Calculator:

          The DRO allows you to adjust the decimal digits to three, four, or five places, enhancing calculation precision.

• Non-Linear Error Compensation:

           It provides up to 40 sections of non-linear error compensation to improve machining accuracy.

• Decimal Digit Options in Inch Mode:

          In inch mode, you can choose between four or five decimal digits. Four digits are suitable for long scale requirements, while five digits offer            high-precision display.

• Communication:

          Includes EDM-compatible output.

Specifications :

Voltage:** AC 80V–260V; 50Hz–60Hz, with various plug options available

Power Consumption:** 15VA

Operating Temperature:** 0–45°C

Storage Temperature:** -30–70°C

Readout Input Signal:** TTL/RS422 square wave

Input Signal Frequency:** Up to 5 MHz

Max Resolution for Digital Display Length:** 5 µm (0.005 mm/0.0002")

Min Resolution for Digital Display Angle:** 0.0001/pulse

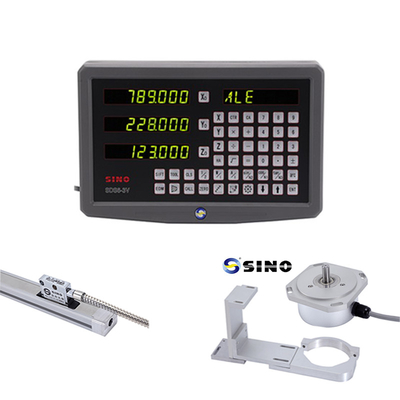

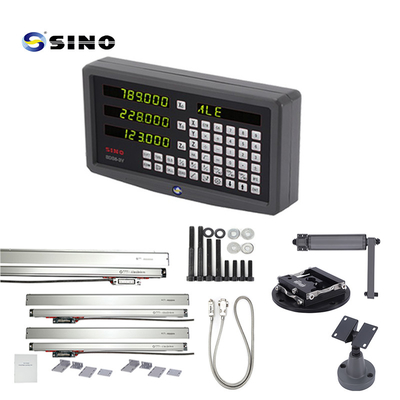

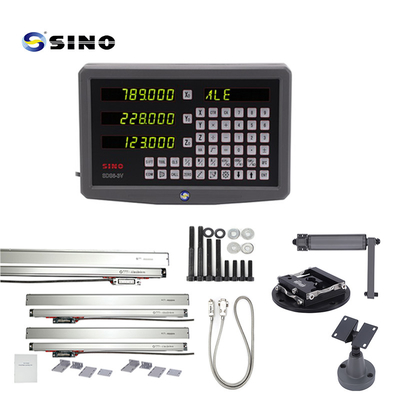

Product image /photos:

Matching Output Interface:

Size:

The rack in the picture is optioned, not standard product.
