SINO SDS2-3MS Digital Readout System 15VA Practical 3 Axis DRO For Plastic Linear Scale DRO System

Brand Name:	SINO
Model Number:	SDS2-3MS
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS2-3MS Digital Readout System

Number Of Axis:

3 Axes

Case:

Plastic Case

Display:

LED Display

Signal:

TTL / RS422

Voltage:

AC100V-240V / 50Hz - 60Hz

Usage:

All Kinds Of 3 Axes Requirement

Supply Ability:

1000 pcs per month

Highlight:

Plastic Linear Scale Digital Readout System

3 Axis Digital Readout System

15VA Digital Readout System

Product Description

SINO SDS2-3MS Digital Readout System 15VA Practical 3 Axis DRO For Plastic Linear Scale DRO System

The SDS2-3MS is the three-axis model of the SDS2 series Digital Display DRO.

As a more economical version of the SDS6 series, it features the latest 16-bit SCM technology and supports high-frequency A/B signals up to 5 MHz.

It is suitable for various machines, including high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines.

Its plastic case reduces weight, making it more cost-effective for transportation.

Stronger Functions:

Enhanced Calculator Function:

The calculator function has been upgraded to allow decimal digits to be set to three, four, or five places, thereby improving calculation precision.

Non-Linear Error Compensation:

The DRO features up to 40 sections of non-linear error compensation, enhancing machining accuracy.

Decimal Digit Options in Inch Mode:

In inch mode, you can select between four or five decimal digits. Four digits meet the needs for long scale measurements, while five digits provide high-precision display.

Remark :

Supply Voltage Range:** AC 100–240V; 50–60Hz, with various plug options available

Power Consumption:** 15VA

Operating Temperature:** 0–45°C

Storage Temperature:** -30–70°C

Readout Input Signal:** TTL/RS422 square wave

Input Signal Frequency:** Up to 5 MHz

Max Resolution for Digital Display Length:** 0.5 µm

Min Resolution for Digital Display Angle:** 0.0001/pulse

Packaging List :

1 PC	3 Axis LED digital display DRO SDS2-3MS
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Power Cable

Product image /photos:

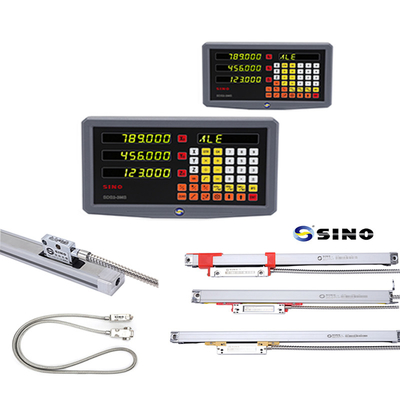

SINO SDS2-3MS Digital Readout System 15VA Practical 3 Axis DRO For Plastic Linear Scale DRO System 0

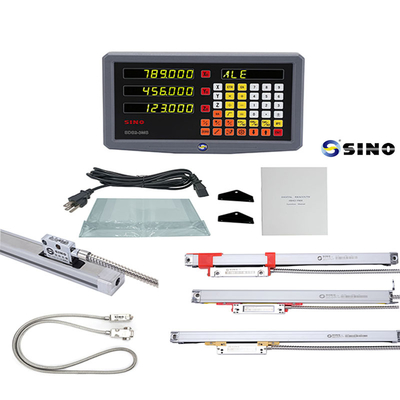

SINO SDS2-3MS Digital Readout System 15VA Practical 3 Axis DRO For Plastic Linear Scale DRO System 1

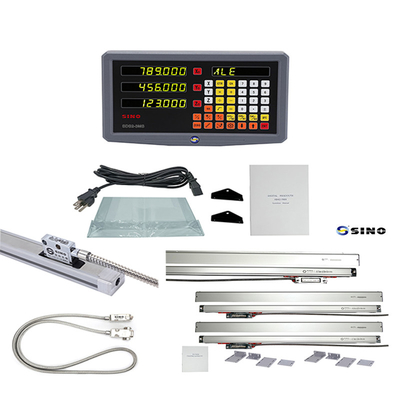

SINO SDS2-3MS Digital Readout System 15VA Practical 3 Axis DRO For Plastic Linear Scale DRO System 2

The rack in the picture is optioned, not standard product.

SINO SDS2-3MS Digital Readout System 15VA Practical 3 Axis DRO For Plastic Linear Scale DRO System 3
