SINO SDS2-3VA Economy TFT LCD 2/3 Axis Digital Readout System DRO With Linear Encoder For Lathe Mill

Brand Name:	SINO
Model Number:	SDS2-3VA
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

Digital Readout System DRO

Number Of Axis:

2 / 3 Axis

Case:

Plastic

Display:

TFT LCD

Signal:

TTL / RS422

Voltage:

AC 100V-240V

Usage:

All Kinds Of Machine

Language:

Chinese / English / Deutsch / French / Espanol

Supply Ability:

1000 pcs per month

Highlight:

Economy TFT LCD Digital Readout System

Linear Encoder Digital Readout System

2/3 Axis Digital Readout System

Product Description

SINO SDS2-3VA Economy TFT LCD 2/3 Axis Digital Readout System DRO with linear encoder for lathe mill

The SDS2-3VA is an economical TFT digital readout (DRO) that represents an upgrade to the SDS2 series. It utilizes the latest 16-bit SCM technology and can handle high-frequency A/B signals up to 5 MHz, making it compatible with a wide range of machines, including high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, milling machines, and more. The unit features a lightweight plastic case, which reduces shipping costs. Additionally, the SDS2-3VA is equipped with a TFT LCD screen to meet diverse and evolving requirements.

Strengthen Functions:

1.Enlarged Calculator Function:
The SDS2 series offers the flexibility to adjust decimal places, allowing users to select three, four, or five decimal digits. This feature enhances calculating precision, making the DRO suitable for tasks requiring varying levels of detail.

2.Non-linear Error Compensation:
The system includes up to 40 sections of non-linear error compensation. This advanced feature corrects deviations in machining, significantly improving overall precision and accuracy.

3.Decimal Digit Selection in Inch Mode:
In inch mode, users can choose between four or five decimal digits. Four digits are ideal for applications requiring long-scale measurements, while five digits provide the high precision needed for more demanding display requirements.

Specifications :

Supply Voltage Range: AC 80V–260V; 50–60Hz, with a US plug available.

Power Consumption: 15 VA

Operating Temperature: 0–45°C

Storage Temperature: -30–70°C

Allowable Input Signal: TTL/RS422 square wave

Allowable Input Signal Frequency: Up to 5 MHz

Maximum Resolution of Digital Display Length: 0.5 µm

Minimum Resolution of Digital Display Angle: 0.0001/pulse

Packaging List :

1 PC	TFT LCD digital readout SDS2-3VA
1 PC	Transparent cover
1 PC	Instruction Manual (English)
1 PC	Power Cable

Product image /photos:

SINO SDS2-3VA Economy TFT LCD 2/3 Axis Digital Readout System DRO With Linear Encoder For Lathe Mill 0

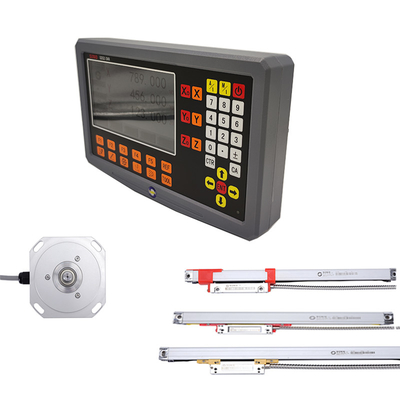

SINO SDS2-3VA Economy TFT LCD 2/3 Axis Digital Readout System DRO With Linear Encoder For Lathe Mill 1

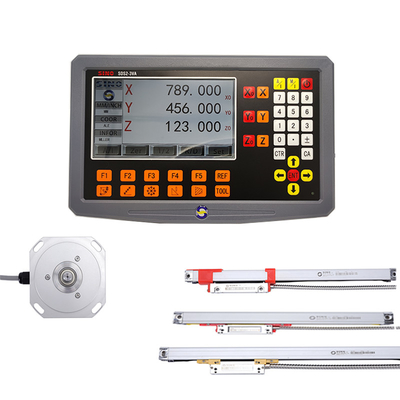

SINO SDS2-3VA Economy TFT LCD 2/3 Axis Digital Readout System DRO With Linear Encoder For Lathe Mill 2

The rack in the picture is optioned, not standard product.

SINO SDS2-3VA Economy TFT LCD 2/3 Axis Digital Readout System DRO With Linear Encoder For Lathe Mill 3
