SINO 3 Axis DRO Kit SDS6-3V Digital Readout System With Multifunctional TTL Signal RS232-C Output For Lathe

Brand Name:	SINO
Model Number:	SDS6-3VF
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO 3 Axis DRO Kit SDS6-3V

Number Of Axis:

3 Axis

Case:

Metal

Display:

Signal:

TTL / RS422

Voltage:

AC 100V-240V

Usage:

RS232-C Output

Supply Ability:

1000 pcs per month

Highlight:

3 Axis DRO Kit

Multifunctional DRO Kit

RS232-C DRO Kit

Product Description

SINO 3 Axis DRO Kit SDS6-3V Digital Readout system with Multifunctional TTL Signal RS232-C Output for lathe

The SDS6 digital readout can handle high-frequency A/B signals up to 5 MHz and uses advanced 16-bit SCM technology. It is designed to replace various basic functions across different machines, making it a versatile DRO. It offers faster measurement speeds and a smoother control system. Each axis supports up to 40 points of non-linear compensation to enhance accuracy. Additionally, the SDS6-3VF DRO features an RS232-C output for connecting to PCs or other specialized systems.

Strengthen Functions:

Enlarged Calculator Function:
The SDS6 allows users to adjust decimal places to three, four, or five digits, enhancing calculation precision according to the specific needs of the task.

Non-linear Error Compensation:
The system supports up to 40 sections of non-linear error compensation, which significantly improves machining accuracy.

Decimal Digit Selection in Inch Mode:
In inch mode, users can choose between four or five decimal digits. Four digits are suited for long-scale measurements, while five digits are ideal for high-precision displays.

Communication:
The SDS6 features an RS232-C output for connecting with PCs or other specialized systems.

Specifications :

Supply Voltage Range: AC 80V–260V; 50–60Hz, with US plug available

Power Consumption: 15 VA

Operating Temperature: 0–45°C

Storage Temperature: -30–70°C

Allowable Input Signal: TTL/RS422 square wave

Allowable Input Signal Frequency: Up to 5 MHz

Maximum Resolution of Digital Display Length: 0.5 µm

Minimum Resolution of Digital Display Angle: 0.0001/pulse

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3VF
1 PC	Transparent cover
1 PC	Instruction Manual (English)
1 PC	Power Cable
1 PC	RS232-C Connection Cable

Product image /photos:

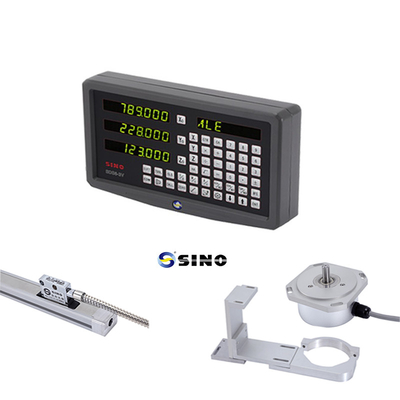

SINO 3 Axis DRO Kit SDS6-3V Digital Readout System With Multifunctional TTL Signal RS232-C Output For Lathe 0

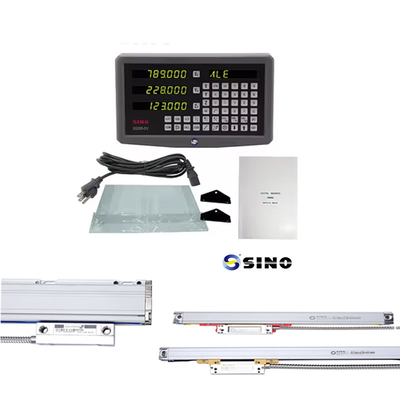

SINO 3 Axis DRO Kit SDS6-3V Digital Readout System With Multifunctional TTL Signal RS232-C Output For Lathe 1

RS232-C Output Interface:

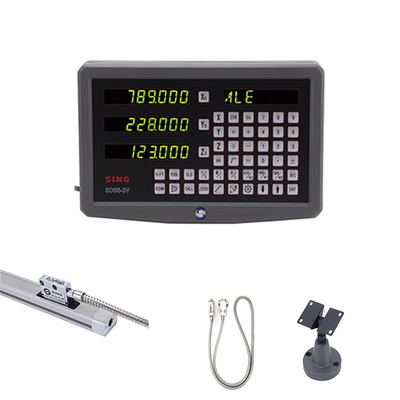

SINO 3 Axis DRO Kit SDS6-3V Digital Readout System With Multifunctional TTL Signal RS232-C Output For Lathe 2

Size:

SINO 3 Axis DRO Kit SDS6-3V Digital Readout System With Multifunctional TTL Signal RS232-C Output For Lathe 3

The rack in the picture is optioned, not standard product.

SINO 3 Axis DRO Kit SDS6-3V Digital Readout System With Multifunctional TTL Signal RS232-C Output For Lathe 4
