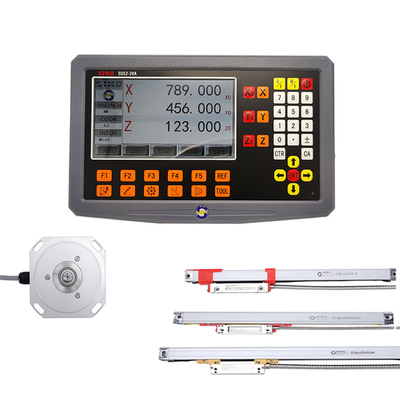

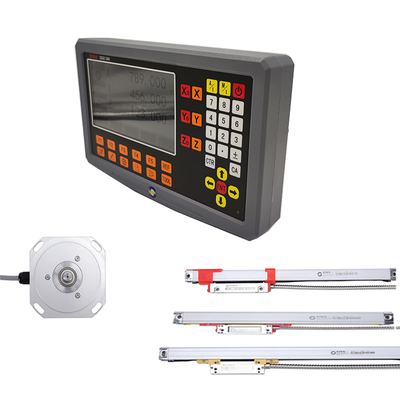

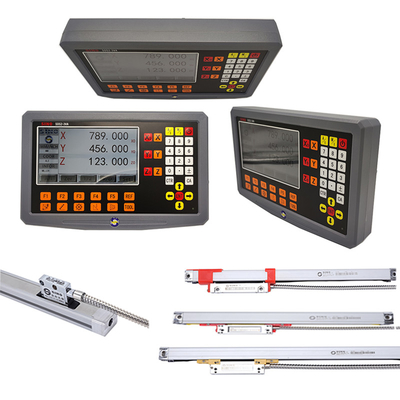

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine

Large Image : SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	SDS2-3VA, KA-300, KA-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine

Description

Item Name:	SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine	Usage:	Lathe/grinding/boring Machine
System:	SDS2-3VA	Scale Model:	KA-300 / KA-500 Series
Signal:	TTL / RS422	Resolution:	0.005mm (5µm)、0.01mm、0.05mm
DRO Mounting:	Electric Box By A Lathe Rack	Meas. Travel:	770~1020mm
Display:	Colorful TFT LCD Screen	Voltage:	100~240V / 5V
Highlight:	Linear Encoder Scale DRO Digital Readout , RS422 DRO Digital Readout , Lathe Machine DRO Digital Readout

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine

The DRO device is specially designed for two-axis lathe machines.

Mount the TFT DRO SDS2-3VA onto the lathe's electrical box using a lathe rack.

Use the KA-300 linear encoder for the Z axis and the KA-500 for the X axis.

Package list:

Item name	2 axis TFT lathe machine DRO unit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Convert Radius to Diameter: Easily convert measurements from radius to diameter for accurate machining.
Compensate for Tool Diameter:Adjust for tool diameter to ensure precise cuts and dimensions.
Taper Measurement: Measure and account for taper to achieve accurate angles and profiles.
200 Tools Storeroom: Store and manage up to 200 tools efficiently.

Detail Information:

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine 0

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine 1

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine 3

Pin Description:

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine 5

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

SINO 2 Axis RS422 SDS2-3VA DRO Digital Readout With Linear Encoder Scale For Lathe Machine 8
