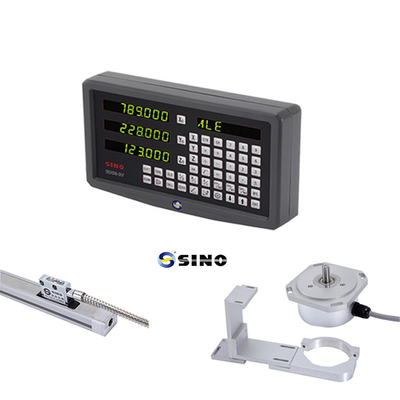

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

Large Image : 3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	SDS2-3VA, KA-300*2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

Description

Item Name:	3 Axis DRO Kit SINO SDS6-3V	Usage:	For Lathe Machine
System:	DRO	Scale Model:	KA-300
Signal:	TTL / EIA-422-A	Resolution:	0.005mm/0.001mm/0.0005mm
Voltage:	AC 100V-240V / KA-300: 5V	Meas. Travel:	70-1020mm
Highlight:	3 Axis DRO Kit , Linear Scale DRO Kit , Lathe Machine DRO Kit

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

The DRO system is specifically tailored for 2-axis mills.

It features a TFT display DRO system, the SDS2-3VA, and comes with two standard grating rulers, the KA-300.

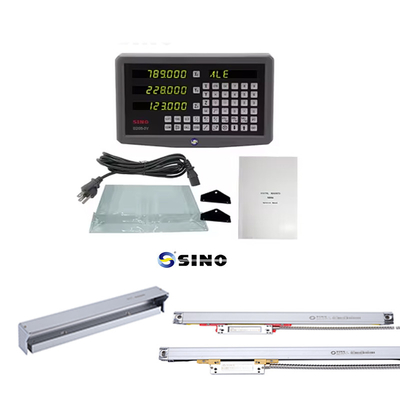

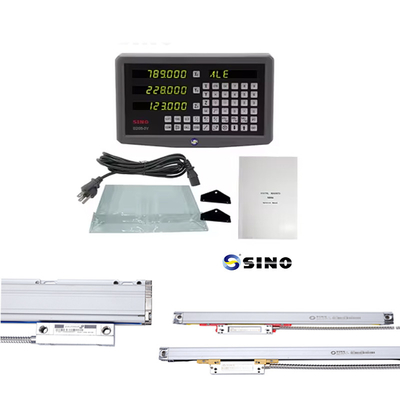

Package list:

Item name	2 axes TFT milling machine DRO system
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Symmetrical division or balancing of parts.
Simple “R”: Basic radius or rounded edge calculation.
Oblique Line Hole Positioning: Accurate placement of holes along angled lines.
PCD Circle Equally Dividing: Evenly spacing points around a circle based on Pitch Circle Diameter.
Bevel Processing: Machining or finishing angled edges or surfaces.

Detail Information:

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine 0

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine 1

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine 2

Pin Description:

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine 4
