2 Axis SINO SDS2MS DRO Digital Readout With Glass Linear Scale For Lathe Milling Machine

2 Axis SINO SDS2MS DRO Digital Readout With Glass Linear Scale For Lathe Milling Machine

The DRO SDS2MS is a versatile two-coordinate numerical display gauge. By adjusting the parameters, it can be easily adapted to suit various machine tools and their specific functions.

Upgraded Functions:

1. Radius/Diameter Conversion: Allows for easy switching between radius and diameter measurements.
2. MM/Inch Conversion: Facilitates quick conversion between millimeters and inches.
3. Absolute/Relative Conversion: Supports both absolute and relative measurement modes.
4. Mid-Splitting Function: Enables accurate splitting of measurements at the midpoint.
5. Easy "R" Function: Simplifies the calculation and display of radius measurements.
6. Smooth "R" Function: Provides a refined method for radius measurement adjustments.
7. PCD Hole Positioning: Assists in precise positioning of holes around a circumference.
8. 200 Groups Zero Position Memory: Stores up to 200 sets of zero positions for convenience.

Specifications of DRO SDS2MS Digital Readout System

1. Voltage Range: AC 85V ~ 250V, 50Hz ~ 60Hz
2. Power Consumption: 15W (25 VA)
3. Coordinate Types: Supports single-coordinate, two-coordinate, and three-coordinate configurations
4. Display: Features a seven-segment display for two or three axes, capable of showing data in eight-digit format
5. Net Weight: 1.3 kg (2.9 lb)
6. Input Signal: TTL, EIA-422 open collector output signal, compatible with programmable controllers
7. Maximum Input Signal Frequency: > 100 kHz
8. Resolution Options: 10 µm, 5 µm, 2 µm, 1 µm, 0.5 µm

Feature:

1. Robust Design: Combines durable hardware with advanced software for reliable performance.
2. Enhanced EMC Testing: Achieves higher standards in electromagnetic compatibility (EMC) with significantly improved anti-interference capabilities.
3. Versatile Application: Designed to meet the requirements of various processing environments.

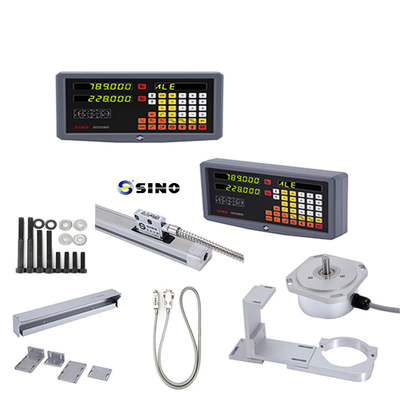

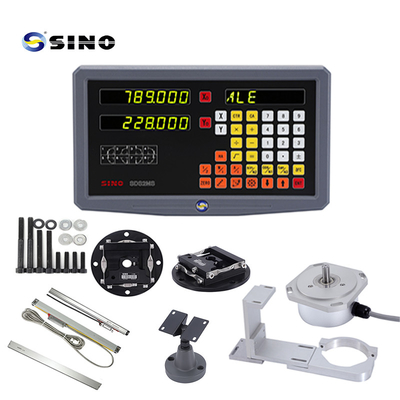

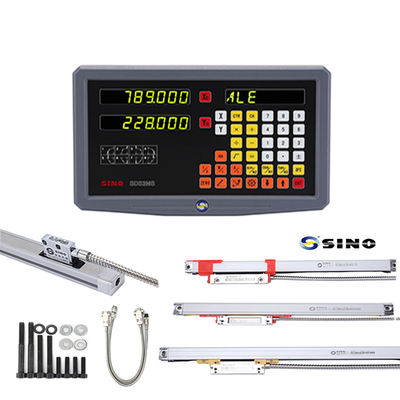

Product image /photos:

The rack in the picture is optioned, not standard product.
