SINO 3 Axis SDS6-3VF Digital Readout Multifunctional DRO Kit TTL Signal RS232-C Output For Lathe

Brand Name: SINO
Model Number: SDS6-3VF
MOQ: 1 PC
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Name:
SINO 3 Axis SDS6-3VF
Number Of Axis:
3 Axis
Case:
Metal
Display:
LED
Signal:
TTL / RS422
Voltage:
AC 100V-240V
Usage:
RS232-C Output
Supply Ability:
1000 pcs per month
Highlight:

Multifunctional DRO Kit Digital Readout

,

RS232-C Output Digital Readout

,

SINO 3 Axis Digital Readout

Product Description



SINO 3 Axis SDS6-3VF Digital Readout MultifunctionalDRO Kit TTL Signal RS232-C Output For Lathe





Robust Design: Combines durable hardware with advanced software for reliable performance.

Enhanced EMC Testing: Achieves higher standards in electromagnetic compatibility (EMC) with significantly improved anti-interference capabilities.

Versatile Application: Designed to meet the requirements of various processing environments.



Strengthen Functions:



Expanded Calculator Functionality:
The SDS6 allows for decimal precision adjustments, with options for three, four, or five decimal places to enhance calculation accuracy.

 Non-linear Error Compensation:
The system features up to 40 sections of non-linear error compensation, designed to significantly improve machining precision.

 Decimal Digit Options in Inch Mode:
In inch mode, users can select between 4 or 5 decimal digits. The 4-digit setting is suitable for general scale measurements, while the 5-digit setting provides higher precision for detailed displays.

 Communication:
The system supports RS232-C output for data communication.



Specifications :



 Supply Voltage Range:Voltage: AC 80V to 260V

                                      Frequency: 50 to 60 Hz
                                      Plug Type: US plug available

Power Consumption:Consumption: 15 VA

                                  Operating Temperature:
                                  Range: 0°C to 45°C

 Storage Temperature:Range: -30°C to 70°C

                                    Input Signal Compatibility:
                                   Type: TTL/RS422 square wave

 Maximum Input Signal Frequency:Frequency: Up to 5 MHz

Display Resolution:Maximum Resolution (Length): 0.5 µm
                               Minimum Resolution (Angle): 0.0001 per pulse





Packaging List :

1 PC 3 Axis LED digital readout SDS6-3VF
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Power Cable
1 PC RS232-C Connection Cable



Product image /photos:

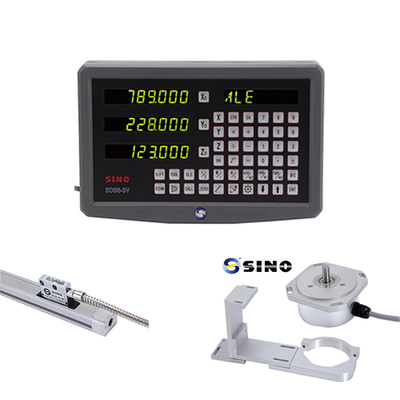

SINO 3 Axis SDS6-3VF Digital Readout Multifunctional DRO Kit TTL Signal RS232-C Output For Lathe 0

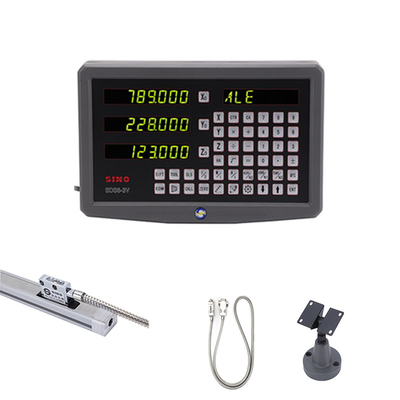

SINO 3 Axis SDS6-3VF Digital Readout Multifunctional DRO Kit TTL Signal RS232-C Output For Lathe 1



RS232-C Output Interface:

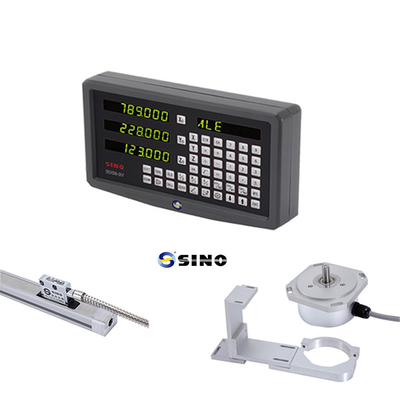

SINO 3 Axis SDS6-3VF Digital Readout Multifunctional DRO Kit TTL Signal RS232-C Output For Lathe 2

Size:



SINO 3 Axis SDS6-3VF Digital Readout Multifunctional DRO Kit TTL Signal RS232-C Output For Lathe 3

The rack in the picture is optioned, not standard product.



SINO 3 Axis SDS6-3VF Digital Readout Multifunctional DRO Kit TTL Signal RS232-C Output For Lathe 4
