SINO SDS2-3VA 3 Axis Digital Readout System With LCD Screen For Lathe Drilling Boring Milling Encoder

SINO SDS2-3VA 3 Axis Digital Readout System with LCD Screen For Lathe Drilling Boring Milling Encoder

Features:

Digital Readout Unit: The SDS2-3VA digital readout unit provides precise numerical readings for machine axes. It features advanced functions such as metric/inch conversion, zero setting, and data storage.

KA300-70mm Linear Scale Optical Encoder: Each axis is equipped with a KA300-70mm linear scale optical encoder. These encoders utilize high-precision encoding to deliver accurate position feedback.

LCD Display: The unit includes a clear LCD display for easy reading of measured values, facilitating straightforward operation.

Easy Installation: The system is designed for straightforward setup, complete with all necessary mounting brackets, cables, and accessories.

Versatile Application: Ideal for a variety of milling and lathe machines, this digital readout system enhances precision and accuracy in machining tasks.

Advantages

Supports five languages: French, German, Spanish, English, and Chinese.
Basic and user-friendly interface.
Large, high-resolution LCD screen.
Compatible with all Chinese-manufactured linear scales.

SDS2-3VA LCD DRO Features:

The LCD display is commonly used in lathe, drilling, boring, and milling equipment and is compatible with all Chinese optical linear glass scales. It is particularly beneficial for international users of milling machines and lathes, as it offers a display that can switch between Chinese and English.

Specifications:

Model: SDS2-3VA
Input Voltage: AC 80-240V
Signal Input: TTL
Construction: Plastic cover
Plug Types: AU, EU, US, UK, and others

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA is a high-performance universal display console suitable for milling, lathe, and grinding applications. It supports up to three linear encoders on its three-axis configuration and offers versatile interfaces for combining axes or adapting inputs to other manufacturers' equipment. Refer to the encoder compatibility guide for details.

The console features a robust die-cast housing and a durable, tactile front panel membrane. Its large LCD panel ensures excellent readability. Key features include PCD (pitch circle diameter), hole patterns, 200 zero memory points, radius/diameter display, and tool offsets.

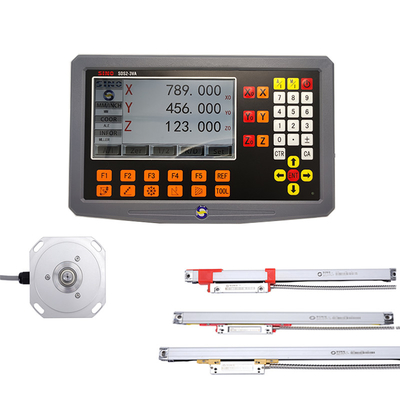

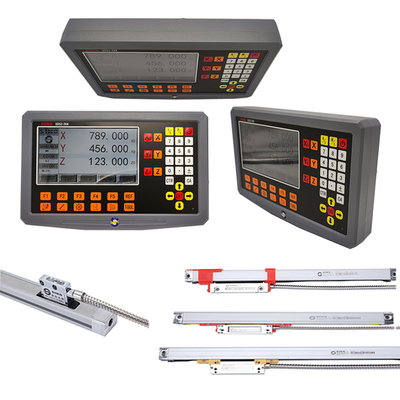

Product image /photos:

The rack in the picture is optioned, not standard product.
