3 Axis DRO SINO SDS2-3VA Lathe Digital Readout With KA300 Glass Linear For Lathe Milling Machine

3 Axis DRO SINO SDS2-3VA Lathe Digital Readout With KA300 Glass Linear For Lathe Milling Machine

SINO SDS2-3VA 3-Axis DRO Digital Readout System, featuring the KA300 Glass Linear Ruler, supports taper measurement and tool management.

This system enhances graphical functions, representing a groundbreaking application of 16- and 32-bit calculators in China's DRO systems. It features an impressive input frequency of up to 5MHz with A/B signals, ranking among the highest globally.

The SINO SDS2-3VA is specifically designed for use with the KA300 glass linear ruler and supports TTL/RS422 signals. It accurately displays and measures the positions of machine tool axes across various applications. The KA300 provides precise position feedback, while the TTL/RS422 signal ensures fast and reliable communication between the ruler and the readout system.

Accurate Positioning: The SINO SDS2-3VA digital readout meter ensures precise measurement and positioning of machine tool axes, providing reliable results for machining operations.

KA300 Glass Linear Ruler: Known for its exceptional durability and stability, the KA300 glass linear ruler offers dependable position feedback, even in demanding industrial settings.

TTL/RS422 Signal Compatibility: This digital readout meter supports both TTL and RS422 signals, allowing for efficient and reliable communication with the KA300 glass linear ruler.

User-Friendly Interface: Featuring an intuitive design and clear numeric displays, the digital readout meter makes it easy for operators to read and interpret position data.

Flexible Configuration: Supporting up to three axes, the system allows for simultaneous measurement and monitoring of multiple machine tool axes, enhancing operational versatility.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential Division: Allows for precise division suitable for spark testers and milling machines.

Involute Chamber Machining: Supports the machining of involute chambers on milling machines.

Bevel Machining and Angular Surface Processing:** Designed for milling machines, this function efficiently handles bevels and angular surfaces.

N3 Function: Exclusive to milling machines, it aids in diagonal boring operations.

R-Arc Function: A milling machine-specific feature for creating R-arcs.

Taper Measurement Function: Tailored for lathes, this ensures accurate taper measurement.

200-Tool Collection: A lathe capability that offers extensive tool management.

Anti-Dithering Function: Crucial for grinding machines, it prevents unwanted oscillations.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA includes preset functions for storing and recalling specific measurement values, making it perfect for repetitive machining tasks and ensuring consistent precision.

Error Compensation: This system features error compensation capabilities, adjusting for machine tool inaccuracies and enhancing overall measurement accuracy through calibration.

Data Interface: Some SDS2-3VA models offer data interfaces like RS-232 or USB, allowing seamless data transfer and communication with external devices, which is essential for quality control and data logging.

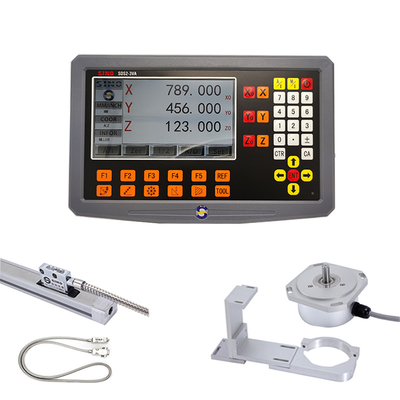

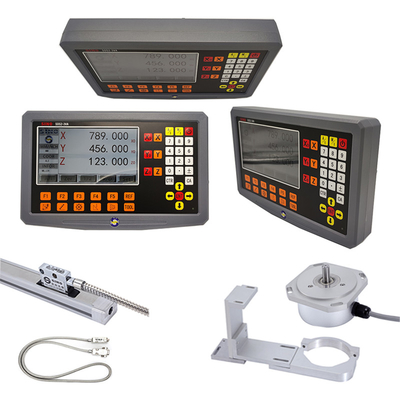

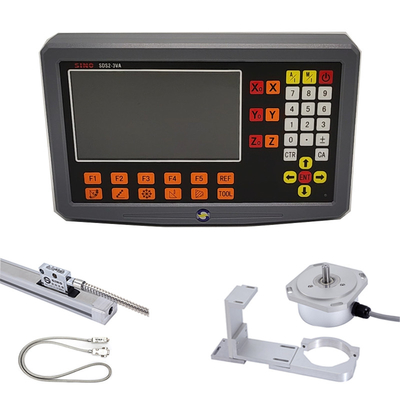

Product image /photos:

The rack in the picture is optioned, not standard product.
